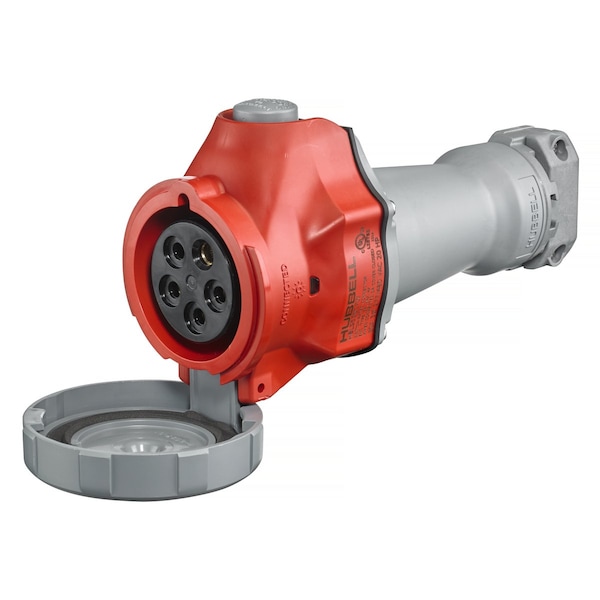

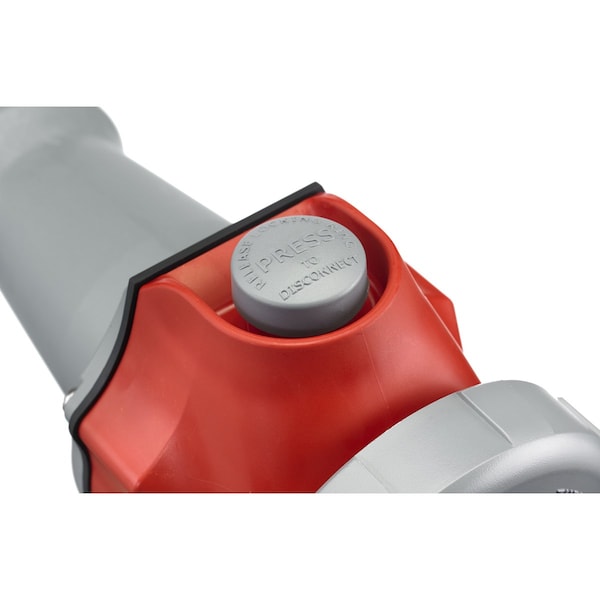

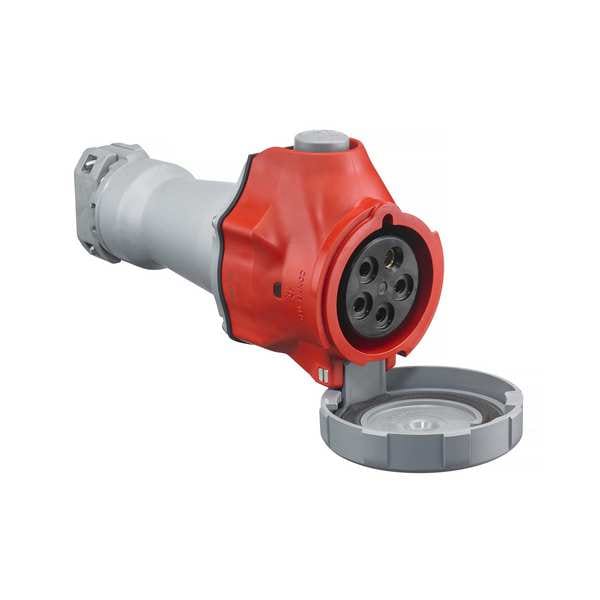

Pin and Sleeve Connector, 4 Poles, 5 Wires
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 277/480V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase - Electrical | 3 |
| Switch Rated | Yes |
| Grounding Style | IEC |
| Power Indication | Yes |
| HP | 30 hp |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Item | Watertight Pin and Sleeve Connector |
| Features | Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing |
| NEMA Rating | 4x |
| Phase | Three |
| For Minimum Cable Diameter | 1/2 in |
| Power Indicating Light | Yes |
| Reverse Service | No |
| Horsepower Rating | 10 HP |
| Housing Material | PBT |
| Minimum Wire Size | 8 AWG |
| Wire Connection Type | Screw Terminals |
| IP Rating | IP69K, IP68 |
| Voltage Rating | 200/346 to 240/415V AC |
| For Maximum Cable Diameter | 1.45 in |
| Minimum Operating Temperature | -40 deg C |
| Cap Type | Spring-Loaded Cap |
| Outside Diameter | 5.17 in |
| Contact Material | Copper |
| Connection Orientation | Straight |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Compatible with Series | Advantage Switch-Rated |
| Market | Industrial |
| Shrouded | Yes |
| Grounding | Grounded |
| Housing Material Grade | Valox 357 |
| Maximum Wire Size | 2 AWG |
| Overall Length | 12.22 in |
| Housing Color | Red |
| Maximum Operating Temperature | 75 deg C |
| For Environment | Wet |
| NEMA Enclosure Rating | 4X |
| Current Rating | 60/63 A |
| UL 94 Flammability Rating | V-0 |
| Package Quantity | 1 |
