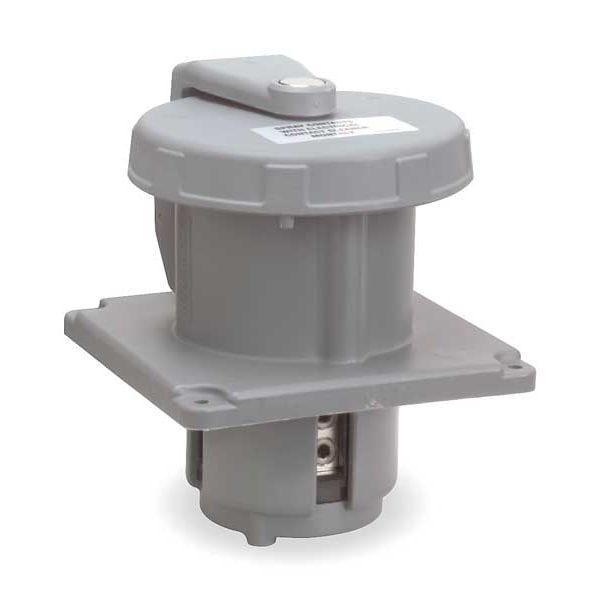

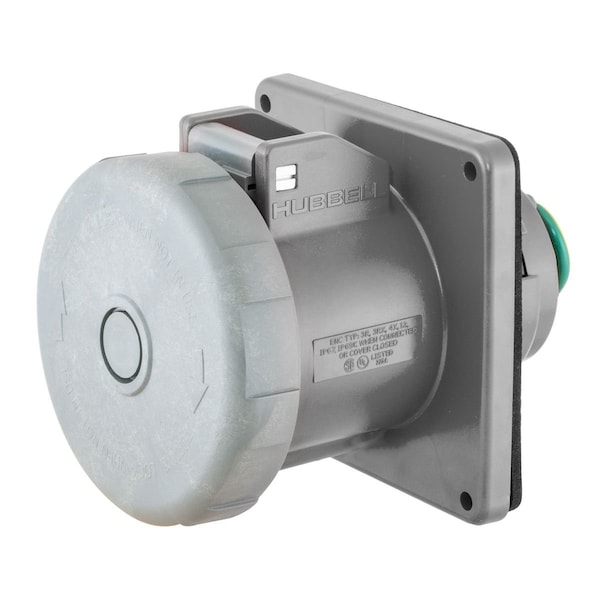

Pin and Sleeve Inlet, 100A, 125/250V, Gray
| Item | Pin and Sleeve Inlet |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Inlet |
| Body Material - Pin and Sleeve | Nylon |
| Type | Non-Metallic |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 125/250VAC |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Amps | 100 |
| Color - Plugs and Receptacles | Gray |
| Receptacle Type | Pin, Sleeve |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Body Material | Nylon |
| Standards | CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Color | Gray |
| Flange Diameter | 3.94 in |
| Housing Color | Yellow |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 3 AWG |
| Insulation Material | Thermoplastic |
| Maximum Wire Size | 1/0 AWG |
| For Environment | Marine |
| IP Rating | IP67 |
| Face Diameter | 3.44 in |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Flange Type | Flanged |
| Reverse Service | Yes |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-0 |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Polybutylene Terephthalate |
| Current Rating | 100 A |
| Minimum Operating Temperature | -40 deg C |
| Package Quantity | 1 |
