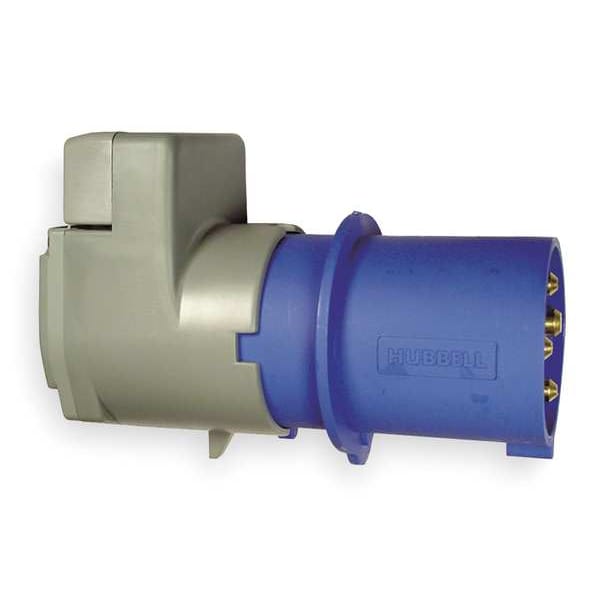

Pin and Sleeve Plug, 3P, 4W, 60A, 250V
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
|---|---|
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 250V AC |
| Color - Plugs and Receptacles | Blue |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | IEC |
| Amps | 60 |
| Phase | Three |
| Voltage | 250VAC |
| Color | Blue |
| HP | 15 HP |
| Features | Integrated Cord Grip Limits Strain on Terminals, Recessed Pins are Protected from Impact and Abuse |
| Body Material | Zytel 101 Nylon |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, UL 1682 |
| Item | Angled Pin and Sleeve Plug |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Reverse Service | No |
| NEMA Enclosure Rating | 4X |
| UL 94 Flammability Rating | HB |
| Housing Material | Non-Metallic |
| Housing Color | Blue |
| Minimum Wire Size | 8 AWG |
| IP Rating | IP22 |
| Current Rating | 60 A |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Overall Length | 7 in |
| For Location | Indoor |
| Voltage Rating | 250V AC |
| For Minimum Cable Diameter | 0.83 in |
| Shrouded | Yes |
| Cap Type | No Cap or Cover |
| Power Indicating Light | No |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 4 AWG |
| Outside Diameter | 3.31 in |
| Maximum Operating Temperature | 75 deg C |
| Horsepower Rating | 15 HP |
| Wire Connection Type | Screw Terminals |
| Material | Composite |
| Max. Voltage | 250 V |
| Type | Angled Plug |
| Style | Standard Service |
| Display Size | Standard Sized |
| Cord Type | All Portable |
| Wire Size | #4 AWG |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 60 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention |
| Nema Rating | Non-NEMA |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Male Plug |
| Current / Amperage Rating | 60 A |
| Series | Low Profile |
| Voltage Rating Description | 3 Phase 250 VAC |
| Application | High Ampacity Connections |
| Package Quantity | 1 |
