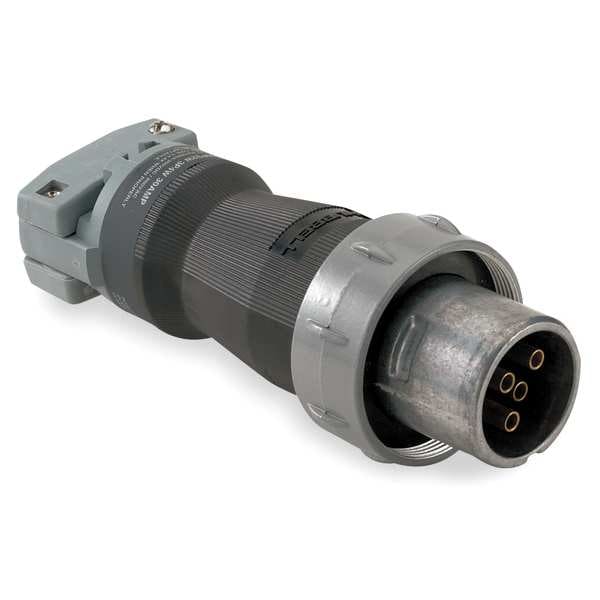

Pin and Sleeve Plug, 4P, 5W, 60A, 600VAC
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Color - Plugs and Receptacles | Gray |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Amps | 60 |
| Phase | Three |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal |
| Body Material | Valox 357 Housing and Aluminum Shroud |
| Standards | CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed |
| Item | Type 4X Pin and Sleeve Plug |
| Voltage | 600VAC/250VDC |
| Color | Gray |
| Material | Composite |
| Overall Length | 9.6 in |
| Outside Diameter | 3.7 in |
| Application | Metallic with Nylon Shroud |
| NEMA Enclosure Rating | 4X |
| UL 94 Flammability Rating | V-0 |
| Housing Color | Gray, Black |
| Housing Material | Non-Metallic |
| Minimum Operating Temperature | -40 deg C |
| Shrouded | Yes |
| Current Rating | 60 A |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 4 AWG |
| Power Indicating Light | No |
| IP Rating | Not Rated |
| Voltage Rating | 250V DC, 600V AC |
| Compatible with Series | Insulgrip |
| Connection Orientation | Straight |
| Cap Type | No Cap or Cover |
| For Minimum Cable Diameter | 1/2 in |
| Reverse Service | No |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 6 AWG |
| For Maximum Cable Diameter | 1.45 in |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Type | Watertight Plug |
| Max. Voltage | 600 V |
| Mounting Box | Stainless Steel (300 Series) |
| Hub Style | Standard |
| Current / Amperage Rating | 60 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 600V AC/250V DC |
| Connectivity | Pressure Terminal Screws |
| Item Type | Male Plug |
| Nema Rating | Non-NEMA |
| Amperage Rating | 60 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Environmental Conditions | Watertight |
| Style | Standard Service,Style 1 Grounding |
| Display Size | Standard Sized |
| Cord Type | All Portable |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010 |
| Material - Mounting Hardware | Cord Mounted |
| Wire Size | #6 AWG to #4 AWG |
| Series | UL 1686 Class 1 Insulgrip® |
| Package Quantity | 1 |
