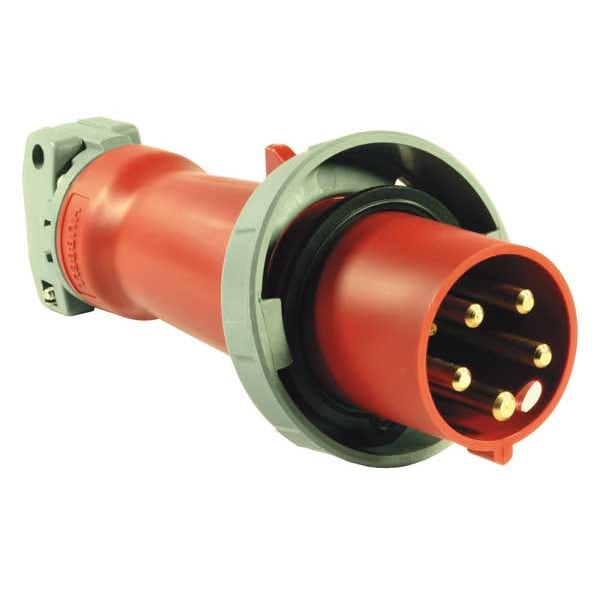

Pin and Sleeve Plug, 4P, 5W, 63A, 415V
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
|---|---|
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 63 |
| Voltage - Plugs and Receptacles | 415V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | IEC |
| Body Material | Zytel 801 Nylon |
| Features | Rugged One-Piece Housing, Thermoset Polyester Contact Carrier |
| Amps | 63 |
| Phase | Single, Three |
| Voltage | 415VAC |
| Item | Pin and Sleeve Plug |
| Standards | CSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL 1682 |
| Amps - Plugs and Receptacles | 63 |
| HP | 10 HP |
| Color | Red |
| Application | High Ampacity Watertight Connections |
| Overall Length | 10.14 in |
| Material | Thermoplastic |
| Power Indicating Light | No |
| Grounding | Grounded |
| Shrouded | Yes |
| Voltage Rating | 200/346 to 240/415V AC, 220/380 to 240/415V AC |
| For Minimum Cable Diameter | 1/2 in |
| Wire Connection Type | Screw Terminals |
| Housing Material | Non-Metallic |
| Minimum Operating Temperature | -40 deg C |
| Reverse Service | No |
| Face Diameter | 2.72 in |
| Connection Orientation | Straight |
| Cap Type | No Cap or Cover |
| IP Rating | IP69K, IP68 |
| Maximum Wire Size | 2 AWG |
| NEMA Enclosure Rating | 4X |
| Current Rating | 60/63 A |
| Housing Color | Red |
| Minimum Wire Size | 8 AWG |
| Horsepower Rating | 10 HP |
| Maximum Operating Temperature | 75 deg C |
| For Maximum Cable Diameter | 1.45 in |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| UL 94 Flammability Rating | V-0 |
| Max. Voltage | 600 V |
| Hub Style | Standard |
| Type | Watertight Receptacle Plugs |
| Nema Rating | Non-NEMA |
| Item Type | Single Flanged |
| Wattage | 36,000 |
| Style | Standard Service |
| Dielectric Strength | Withstands 3000V Minimum in |
| Voltage Rating Description | 3 Phase Y 347/600 VAC 200/346-240/415 V V;220/380-240/415 V V |
| Amperage Rating | 60 A |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Number Of Conductors | 5-Wire Grounding |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 60 A |
| Series | HBL Heavy Duty |
| Environmental Conditions | Watertight |
| Industry Standard(s) | Listed To Standard UL1682 CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wire Size | #8 AWG to #2 AWG |
| Insulation | Insulated Body |
| Package Quantity | 1 |
