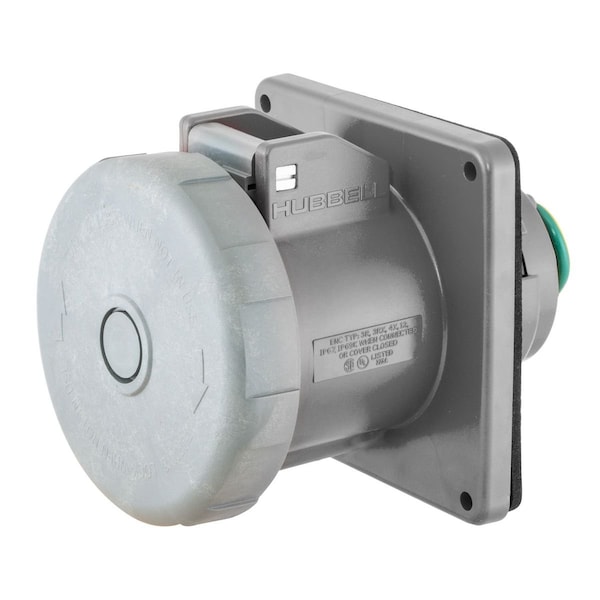

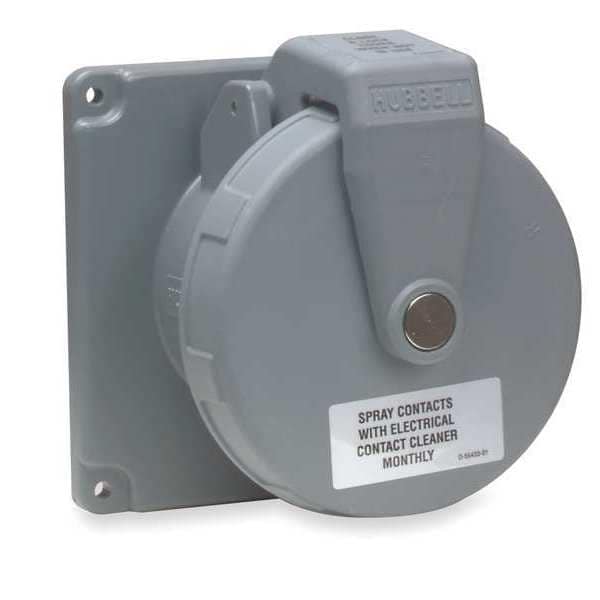

Pin and Sleeve Receptacle, 100A, 125/250V
| Item | Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 125/250VAC |
| Amps | 100 |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Color - Plugs and Receptacles | Yellow |
| Receptacle Type | Single Pin and Sleeve |
| Number of Poles | 3 |
| Phase | Single |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 1 |
| Switch Rated | No |
| Features | Color Coded |
| Body Material | Nylon |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Color | Yellow |
| Housing Material | Thermoplastic |
| IP Rating | IP67 |
| Minimum Operating Temperature | -40 deg C |
| UL 94 Flammability Rating | HB |
| Housing Color | Gray |
| Cap Type | Spring-Loaded Cap |
| Maximum Wire Size | 1/0 AWG |
| Connection Orientation | Straight |
| Current Rating | 100 A |
| Minimum Wire Size | 3 AWG |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant |
| NEMA Enclosure Rating | 4X |
| Face Diameter | 4.71 in |
| Voltage Rating | 125/250V AC |
| Shrouded | Yes |
| Number of Gangs | 1 |
| Flange Type | Flanged |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Reverse Service | No |
| Power Indicating Light | No |
| Market | Industrial |
| Corrosion Resistant | Yes |
| Package Quantity | 1 |
