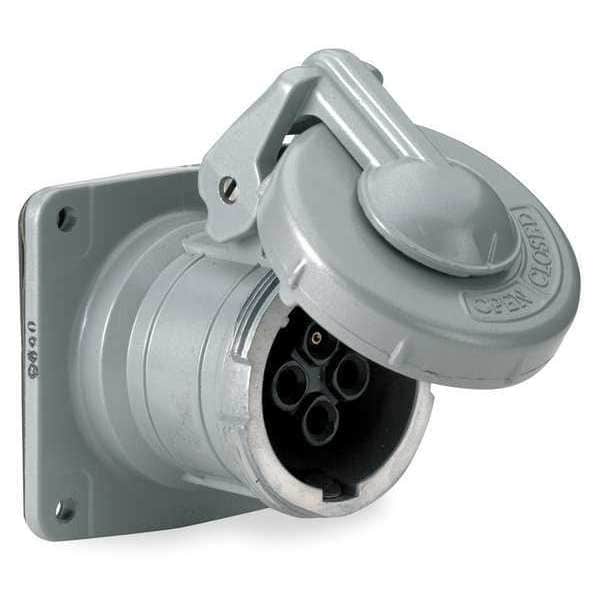

Pin and Sleeve Receptacle, 100A, 600VAC
| Item | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Type | Watertight Receptacle |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 600VAC/250VDC |
| Amps | 100 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Color - Plugs and Receptacles | Gray |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Material | Thermoplastic |
| Grounding Style | Style 1 |
| Phase - Electrical | 3 |
| Standards | CSA Certified C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed |
| Switch Rated | No |
| NEMA Rating | 4x |
| Color | Gray |
| Features | Abuse Resistant |
| Body Material | Nylon |
| Maximum Operating Temperature | 75 deg C |
| Power Indicating Light | No |
| Flange Type | Flanged |
| Minimum Operating Temperature | -40 deg C |
| Wire Connection Type | Screw Terminals |
| Housing Color | Silver |
| Housing Material | Thermoplastic |
| NEMA Enclosure Rating | 4X |
| Minimum Wire Size | 3 AWG |
| Reverse Service | No |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Current Rating | 100 A |
| Maximum Wire Size | 1/0 AWG |
| Market | Industrial |
| UL 94 Flammability Rating | V-0 |
| Number of Gangs | 1 |
| Housing Material Grade | Valox 357 |
| Shrouded | Yes |
| Grounding | Grounded |
| Face Diameter | 4.7 in |
| Voltage Rating | 600V AC/250V DC |
| Connection Orientation | Straight |
| Cap Type | Spring-Loaded Cap |
| Gasket Material | Neoprene |
| Max. Voltage | 600 V AC |
| Flange Material | Epoxy Painted Aluminum |
| Cord Size | 4 to 2 AWG |
| Screw Material | 300 Stainless Steel |
| Dielectric Strength | 3,000 V AC |
| Bushing Material | Aluminum |
| Product Type | Insulgrip Device |
| Temp. Rise | 30°C |
| Retainer Material | Thermoset Polyester |
| Weight | 3 lb |
| Service | Standard |
| Flammability | UL 94 V0 |
| Operating Temp. | -40 to 75°C |
| Application | Metallic with Nylon Shroud |
| Wire Size | #3 AWG to #1/0 AWG |
| Wattage | 60,000 |
| Amperage Rating | 100 A |
| Item Type | Single Flanged-Reversed |
| Series | UL 1686 Class 1 Insulgrip® |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Watertight |
| Current / Amperage Rating | 100 A |
| Display Size | Standard Sized Product |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Connectivity | Pressure Terminal Screws |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Voltage Rating Description | 600V AC/250V DC |
| Style | Standard Service,Style 1 Grounding |
| Package Quantity | 1 |
