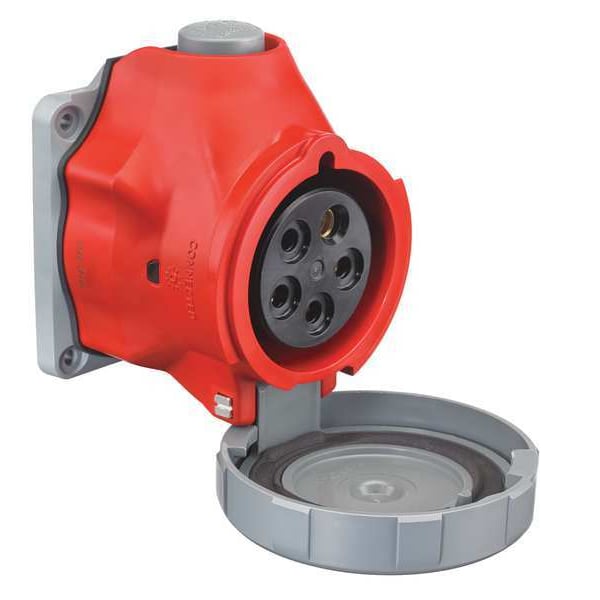

Receptáculo de clavija y contacto, 277/480VCA, Rojo.
| Item | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Valox 357 |
| Type | Receptacle |
| Amps - Plugs and Receptacles | 60 |
| Voltage | 277/480V AC |
| Voltage - Plugs and Receptacles | 277/480V AC |
| Amps | 60 |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 4 |
| Phase | Three |
| Number of Wires | 5 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| NEMA Rating | 4x |
| Power Indication | Yes |
| Switch Rated | Yes |
| Features | Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground |
| Standards | CSA Certified LR280C, File E146033, UL IEC 60309-1 IEC 60309-2, UL Listed |
| HP | 30 hp |
| Color | Red |
| Shrouded | Yes |
| NEMA Enclosure Rating | 4X |
| Grounding | Grounded |
| Cap Type | Spring-Loaded Cap |
| Horsepower Rating | 30 HP |
| Minimum Operating Temperature | -40 deg C |
| Connection Orientation | Straight |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Reverse Service | No |
| Number of Gangs | 1 |
| Flange Type | Flanged |
| Maximum Wire Size | 2 AWG |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Polybutylene Terephthalate |
| IP Rating | IP69K |
| UL 94 Flammability Rating | V-0 |
| Current Rating | 60 A |
| Power Indicating Light | Yes |
| Housing Material Grade | Valox 357 |
| Market | Industrial |
| Housing Color | Red |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 8 AWG |
| Face Diameter | 3.88 in |
| Voltage Rating | 277/480V AC |
| Product Type | Receptacle |
| Current / Amperage Rating | 60 A |
| Series | Advantage Switch-Rated |
| Amperage Rating | 60 A |
| Style | IP69k NEMA 4X |
| Voltage Rating Description | 3 Phase Y 277/480 VAC |
| Package Quantity | 1 |
