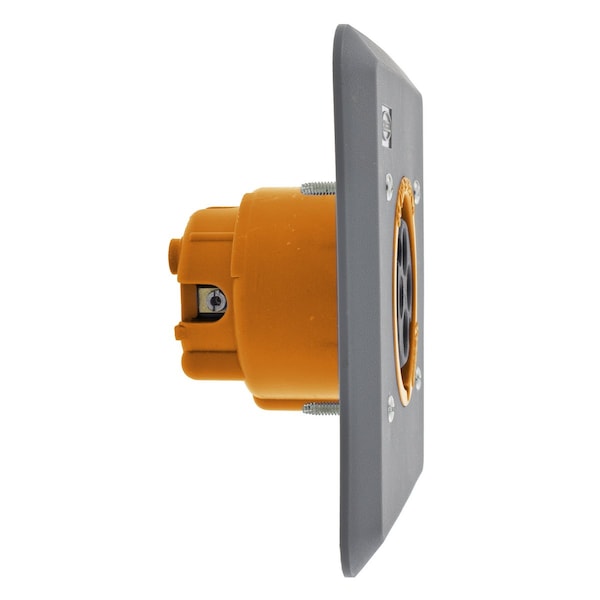

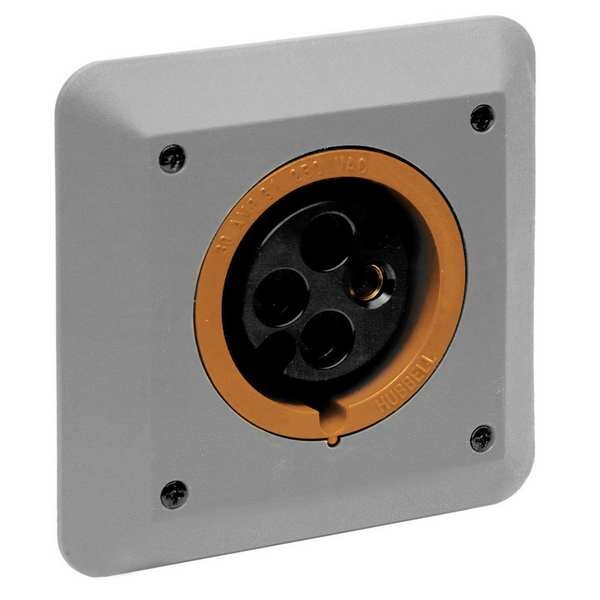

Pin and Sleeve Receptacle, 30A, 125/250V
| Item | Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Receptacle |
| Voltage | 125/250VAC |
| Amps - Plugs and Receptacles | 30 |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Amps | 30 |
| Color - Plugs and Receptacles | Orange |
| Receptacle Type | IEC |
| Number of Poles | 3 |
| Phase | Three |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 1 |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Features | Color Coded, Split Sleeves with Self-Adjusting Stainless Steel Springs |
| Color | Orange |
| Switch Rated | No |
| Body Material | Zytel 101 Nylon |
| Minimum Operating Temperature | -40 deg C |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Minimum Wire Size | 14 AWG |
| Flange Type | Flanged |
| Housing Material | Thermoplastic |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Maximum Operating Temperature | 75 deg C |
| Number of Gangs | 1 |
| Cap Type | Spring-Loaded Cap |
| Power Indicating Light | No |
| Market | Industrial |
| Current Rating | 30 A |
| IP Rating | IP22 |
| Shrouded | Yes |
| Reverse Service | No |
| Voltage Rating | 250V AC |
| Housing Color | Orange |
| Housing Material Grade | Zytel 101 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 10 AWG |
| Operating Temp. Range | -40 to 75° C |
| Wire Size | 12 to 10 AWG |
| Package Quantity | 1 |
