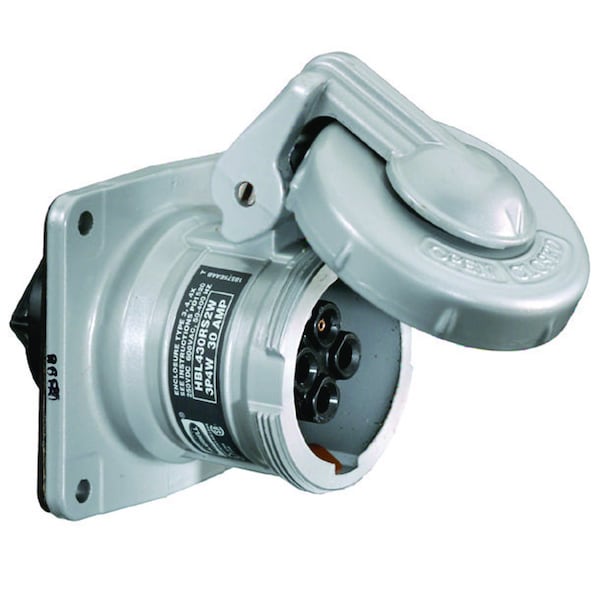

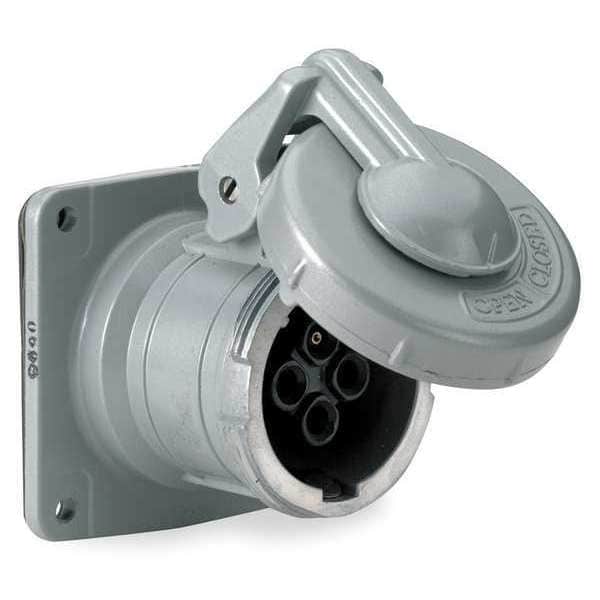

Pin and Sleeve Receptacle, 30A, 600VAC
| Item | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Voltage | 600VAC/250VDC |
| Amps - Plugs and Receptacles | 30 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Amps | 30 |
| Color - Plugs and Receptacles | Gray |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | Style 2 |
| Phase - Electrical | 3 |
| Features | Abuse Resistant |
| Color | Gray |
| Standards | CSA Certified C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed |
| Body Material | Nylon |
| NEMA Rating | 4x |
| Switch Rated | No |
| Housing Material Grade | Valox 357 |
| Cap Type | Spring-Loaded Cap |
| Voltage Rating | 600V AC/250V DC |
| NEMA Enclosure Rating | Not Rated |
| Market | Industrial |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Housing Color | Silver |
| Minimum Operating Temperature | -40 deg C |
| Flange Type | Flanged |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| Maximum Wire Size | 2 AWG |
| Face Diameter | 3.89 in |
| Grounding | Grounded |
| Minimum Wire Size | 8 AWG |
| Current Rating | 30 A |
| Shrouded | Yes |
| Housing Material | Thermoplastic |
| Retainer Material | Thermoset Polyester |
| Service | Standard |
| Flammability | UL 94 V0 |
| Flange Material | Epoxy Painted Aluminum |
| Screw Material | 300 Stainless Steel |
| Gasket Material | Neoprene |
| Dielectric Strength | 3,000 V AC |
| Product Type | Insulgrip Device |
| Temp. Rise | 30°C |
| Max. Voltage | 600 V AC |
| Cord Size | 10 to 8 AWG |
| Weight | 1.45 lb |
| Bushing Material | Aluminum |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
