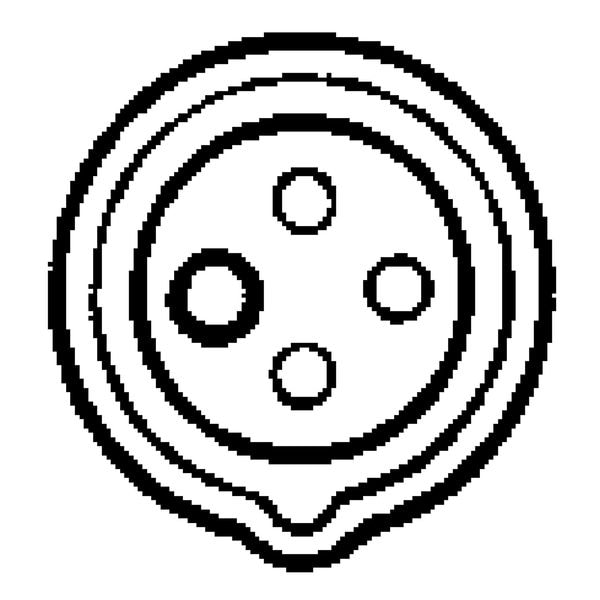

Pin and Sleeve Receptacle, 60A, 250V
| Item | Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Voltage | 250VAC |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 250V AC |
| Amps | 60 |
| Color - Plugs and Receptacles | Blue |
| Number of Poles | 3 |
| Phase | Three |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| HP | 5 hp |
| Switch Rated | No |
| Color | Blue |
| Standards | CSA Certified C22.2 No. 182.1, CSA Certified LR285C, IEC 60309-1, IEC 60309-2, UL E146032 |
| Body Material | Zytel 101 Nylon |
| Features | Abuse Resistant |
| NEMA Enclosure Rating | 4X |
| UL 94 Flammability Rating | V-0 |
| Number of Gangs | 1 |
| Current Rating | 60 A |
| Reverse Service | No |
| Housing Color | Blue |
| Power Indicating Light | No |
| Cap Type | Spring-Loaded Cap |
| Maximum Wire Size | 2 AWG |
| Connection Orientation | Straight |
| Housing Material Grade | Zytel 101 |
| Market | Industrial |
| Flange Type | Flanged |
| Grounding | Grounded |
| Voltage Rating | 250V AC |
| Shrouded | Yes |
| Resistance Properties | Shatter and Crack Resistant |
| Horsepower Rating | 5 HP |
| Housing Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 8 AWG |
| Package Quantity | 1 |
