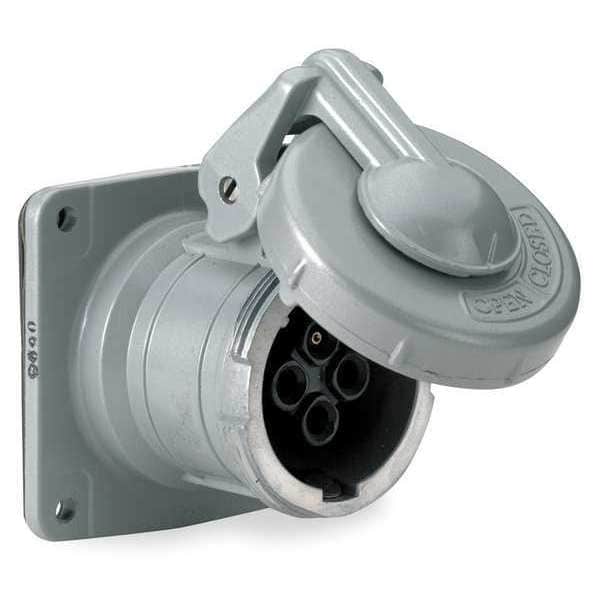

Pin and Sleeve Receptacle, 60A, 600VAC
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Watertight Receptacle |
| Voltage | 600VAC/250VDC |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Amps | 60 |
| Color - Plugs and Receptacles | Gray |
| Phase | Single |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Material | Thermoplastic |
| Grounding Style | Style 1 |
| Phase - Electrical | 3 |
| NEMA Rating | 4x |
| Features | Color Coded |
| Body Material | Nylon |
| Switch Rated | No |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Color | Gray |
| Power Indicating Light | No |
| Reverse Service | No |
| Face Diameter | 4.66 in |
| Cap Type | Spring-Loaded Cap |
| NEMA Enclosure Rating | 4X |
| Market | Industrial |
| UL 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Housing Material Grade | Zytel 101 |
| Maximum Wire Size | 1/0 AWG |
| Horsepower Rating | 15 HP |
| Grounding | Grounded |
| IP Rating | IP67 |
| Current Rating | 60 A |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Connection Orientation | Straight |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Shrouded | Yes |
| Number of Gangs | 1 |
| Minimum Wire Size | 3 AWG |
| Flange Type | Flanged |
| Wire Connection Type | Screw Terminals |
| Retainer Material | Thermoset Polyester |
| Weight | 2.5 lb |
| Product Type | Insulgrip Device |
| Dielectric Strength | 3,000 V AC |
| Flammability | UL 94 5VA, UL 94 V0 |
| Bushing Material | Aluminum |
| Temp. Rise | 30°C |
| UV Resistance | All Materials are UV Stabilized |
| Gasket Material | Neoprene |
| Cord Size | 6 to 4 AWG |
| Flange Material | Epoxy Painted Aluminum |
| Screw Material | 300 Stainless Steel |
| Service | Standard |
| Max. Voltage | 600 V AC |
| Operating Temp. | -40 to 75°C |
| Application | Metallic with Nylon Shroud |
| Style | Standard Service,Style 1 Grounding |
| Series | UL 1686 Class 1 Insulgrip® |
| Display Size | Standard Sized Product |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Single Flanged |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Wattage | 36,000 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 600V AC/250V DC |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 60 A |
| Wire Size | #8 AWG to #2 AWG |
| Package Quantity | 1 |
