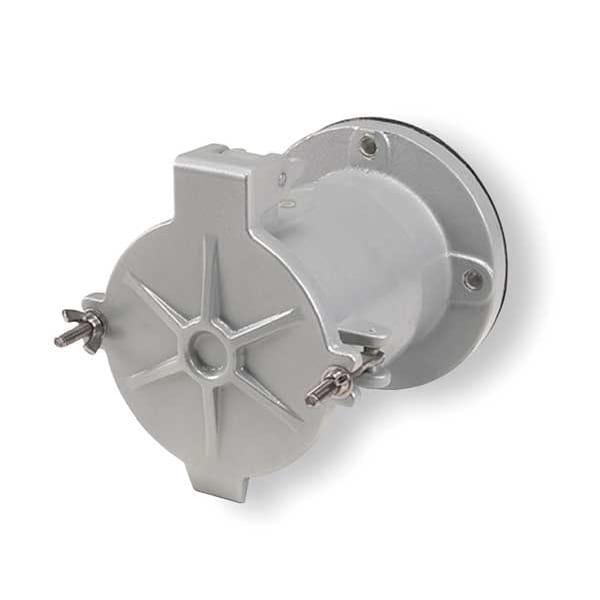

Pin & Sleev Receptacl, 200A, 3P, 2W, NEMA 4X
| Item | Pin and Sleeve Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Copper-Free Aluminum |
| Type | Pin, Sleeve |
| Voltage | 600V AC/250V DC |
| Amps - Plugs and Receptacles | 200 A |
| Amps | 200 |
| Receptacle Type | Pin, Sleeve |
| Number of Poles | 2 |
| Length | 7.87 in |
| Phase | Single |
| Number of Wires | 2 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Width | 6.83 in |
| Grounding Style | Style 2 |
| NEMA Rating | 4x |
| Standards | CSA Certified LR111846, UL E10757 |
| Features | Boxes Come with a Green Grounding Screw |
| Use With | Suitable for Indoor Or Outdoor Use, Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, ReNeries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities |
| Wire Connection Type | Spring Clamp Terminals |
| Market | Industrial |
| Polarized | Yes |
| Voltage Rating | 600V AC/250V DC |
| Cap Type | Flip-Up and Screw Cap |
| Contact Material | Brass |
| Number of Gangs | 1 |
| Grounding | Grounded |
| Housing Color | Gray |
| Shrouded | Yes |
| Connection Orientation | Straight |
| Housing Material | Copper-Free Aluminum |
| Current Rating | 200 A |
| Reverse Service | No |
| Hazardous Location Specification | Not Applicable |
| For Location | Indoor, Outdoor |
| NEMA Enclosure Rating | 4X |
| For Environment | Cold, Corrosive, Hazardous Location, Wet |
| Flange Type | Flanged |
| IP Rating | Not Rated |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester |
| Power Indicating Light | No |
| Hz | 50-400 Hz |
| Dimensions | 7.87 in x 6.83 in x 7.59 in |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Amperage Rating | 200 A |
| Frequency Rating | 50-400 Hz |
| Height | 7.59 in |
| Style | Style II |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Series | VersaMate |
| Package Quantity | 1 |
