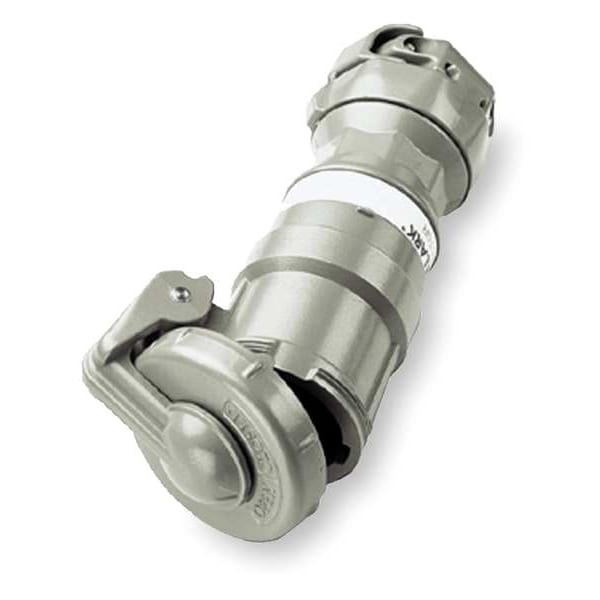

Pin & Slve Conn, 100A, 4P, 4W, 600VAC/250VDC
| Number of Poles | 4 |
|---|---|
| Number of Wires | 4 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Item | Pin and Sleeve Connector |
| Voltage | 600V AC/250V DC |
| Amps | 100 |
| NEMA Rating | 4x |
| Standards | CSA Certified LR111846, UL E10757 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Features | Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Phase | 3 |
| For Environment | Cold, Corrosive, Hazardous Location, Washdown, Wet |
| Resistance Properties | Corrosion Resistant |
| Housing Color | Gray |
| Wire Connection Type | Screw Terminals |
| For Maximum Cable Diameter | 1.68 in |
| Minimum Wire Size | 4 AWG |
| Current Rating | 100 A |
| Cap Type | Flip-Up and Screw-On Cap |
| Housing Material | Copper-Free Aluminum |
| Outside Diameter | 4.56 in |
| Contact Material | Brass |
| Shrouded | Yes |
| Grounding | Grounded |
| Overall Length | 11.66 in |
| For Minimum Cable Diameter | 0.88 in |
| NEMA Enclosure Rating | 3, 4, 4X |
| Power Indicating Light | No |
| Market | Industrial |
| Connection Orientation | Straight |
| Voltage Rating | 250V DC, 600V AC |
| Compatible with Series | Versamate |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester |
| Maximum Wire Size | 2 AWG |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Reverse Service | No |
| For Location | Indoor, Outdoor |
| Type | Pin, Sleeve |
| Length | 11.65 in |
| Series | VersaMate |
| Frequency Rating | 50-400 Hz |
| Dimensions | 11.65 in x 4.56 in x 4.56 in |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Style | Style I |
| Width | 4.56 in |
| Amperage Rating | 100 A |
| Height | 4.56 in |
| Grommet Range | 0.88-1.68 |
| Package Quantity | 1 |
