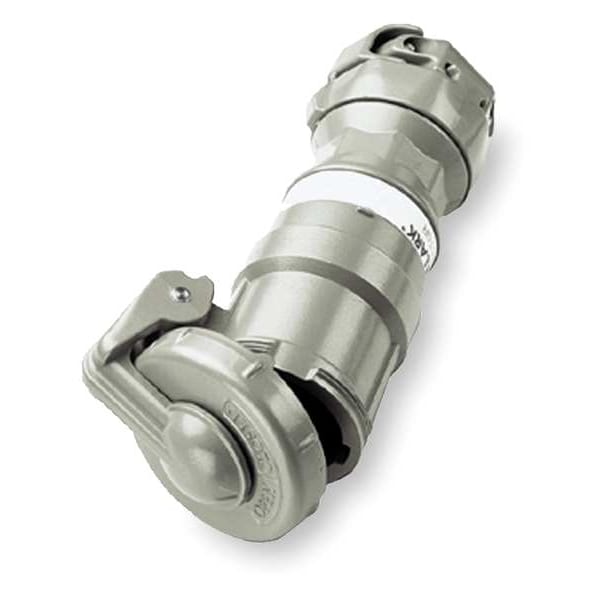

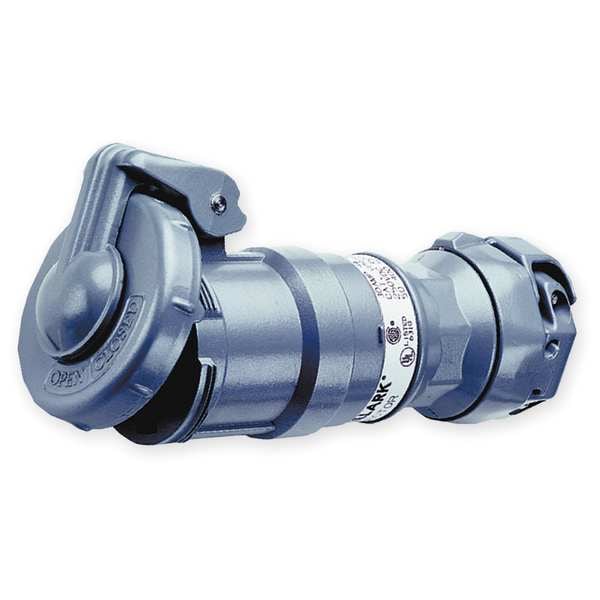

Pin & Slve Conn, 60A, 4P, 3W, 600VAC/250VDC
| Number of Poles | 4 |
|---|---|
| Number of Wires | 3 |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Amps | 60 |
| Standards | CSA Certified LR111846, UL E10757 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Item | Pin and Sleeve Connector |
| Voltage | 600V AC/250V DC |
| NEMA Rating | 4x |
| Phase | 3 |
| Features | Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| For Minimum Cable Diameter | 0.65 in |
| NEMA Enclosure Rating | 4X, 3, 4 |
| Current Rating | 60 A |
| Overall Length | 9.69 in |
| For Location | Outdoor, Indoor |
| Compatible with Series | Versamate(R) |
| Grounding | Grounded |
| For Maximum Cable Diameter | 1-1/2 in |
| Wire Connection Type | Screw Terminals |
| Power Indicating Light | No |
| Voltage Rating | 250V DC, 600V AC |
| Housing Material | Copper-Free Aluminum |
| Maximum Wire Size | 2 AWG |
| Cap Type | Flip-Up and Screw-On Cap |
| Contact Material | Brass |
| Connection Orientation | Straight |
| Market | Industrial |
| Shrouded | Yes |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Housing Color | Gray |
| Minimum Wire Size | 6 AWG |
| Resistance Properties | Corrosion Resistant |
| Outside Diameter | 4.38 in |
| Housing Material Finish | Baked Powder Epoxy Coated; Polyester Finish |
| Reverse Service | No |
| For Environment | Cold, Corrosive, Hazardous Location, Washdown, Wet |
| Package Quantity | 1 |
