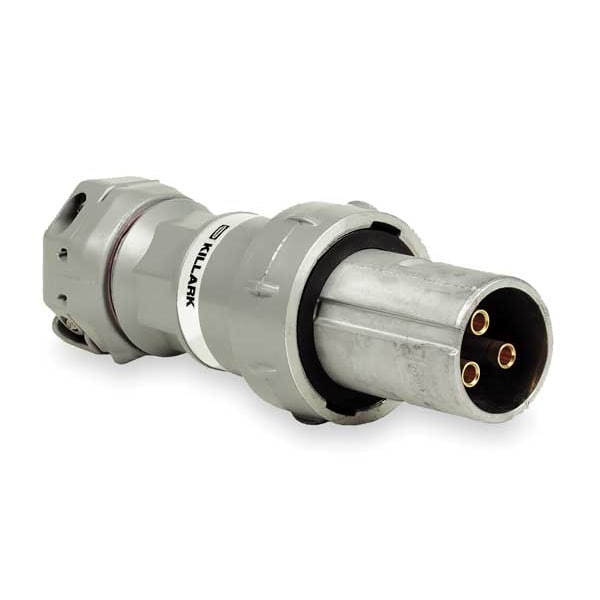

Pin & Slve Plug, 100A, 3P, 3W, 600VAC/250VDC
| Amps - Plugs and Receptacles | 100 A |
|---|---|
| Number of Poles | 3 |
| Number of Wires | 3 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Item | Pin and Sleeve Plug |
| Amps | 100 |
| Voltage | 600V AC/250V DC |
| Standards | CSA Certified LR111846, UL E10757 |
| NEMA Rating | 4x |
| Features | Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Phase | Three |
| Grounding | Grounded |
| Shrouded | Yes |
| Reverse Service | No |
| Maximum Wire Size | 2 AWG |
| For Location | Indoor, Outdoor |
| Market | Industrial |
| Face Diameter | 2.469 in |
| Power Indicating Light | No |
| Voltage Rating | 250V DC, 600V AC |
| Outside Diameter | 4 in |
| Housing Material | Metallic |
| Housing Color | Gray |
| Horsepower Rating | Not Applicable |
| Cap Type | Not Applicable |
| Minimum Wire Size | 4 AWG |
| Hazardous Location Specification | Class I, Div 1 and 2, Group A, B, C, D |
| Current Rating | 100 A |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| For Environment | Cold, Corrosive, Hazardous Location, Marine, Wet |
| Overall Length | 10-7/8 in |
| Connection Orientation | Straight |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester |
| Finish | Polyester, Baked Powder Epoxy, Finish |
| Type | Pin, Sleeve |
| Hz | 50-400 Hz |
| Grommet Range | 0.88-1.68 |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Height | 4-1/4 in |
| Style | Style I |
| Dimensions | 10.87 in x 4-1/4 in x 4-1/4 in |
| Amperage Rating | 100 A |
| Frequency Rating | 50-400 Hz |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Series | VersaMate |
| Width | 4-1/4 in |
| Length | 10.87 in |
| Package Quantity | 1 |
