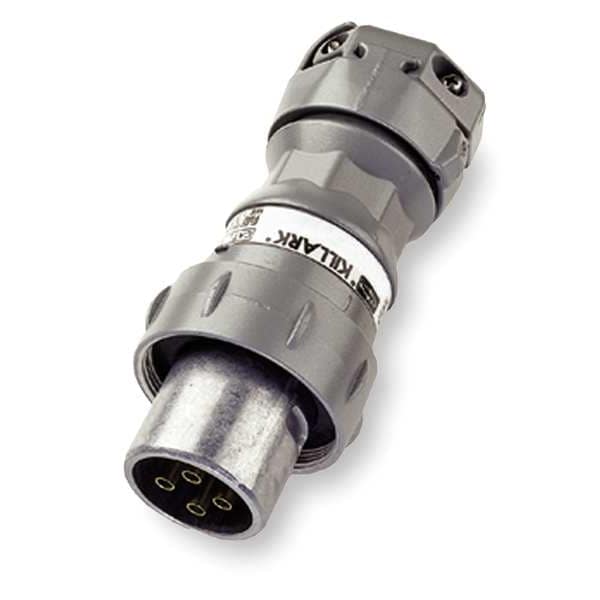

Pin & Slve Plug, 60A, 3P, 3W, 600VAC/250VDC
| Amps - Plugs and Receptacles | 60 A |
|---|---|
| Number of Poles | 3 |
| Number of Wires | 3 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Amps | 60 |
| NEMA Rating | 4x |
| Standards | CSA Certified LR111846, UL E10757 |
| Item | Pin and Sleeve Plug |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Voltage | 600V AC/250V DC |
| Phase | Three |
| Features | Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester |
| Cap Type | Not Applicable |
| Market | Industrial |
| Power Indicating Light | No |
| Outside Diameter | 3-3/8 in |
| Housing Color | Gray |
| Voltage Rating | 250V DC, 600V AC |
| Current Rating | 60 A |
| Horsepower Rating | Not Applicable |
| Connection Orientation | Straight |
| Hazardous Location Specification | Class I, Div 1 and 2, Group A, B, C, D |
| For Environment | Cold, Corrosive, Hazardous Location, Marine, Wet |
| Wire Connection Type | Screw Terminals |
| IP Rating | Not Rated |
| Minimum Wire Size | 6 AWG |
| Reverse Service | No |
| Overall Length | 8.813 in |
| NEMA Enclosure Rating | 4X |
| Maximum Wire Size | 2 AWG |
| Face Diameter | 2-1/4 in |
| Housing Material | Metallic |
| Shrouded | Yes |
| Grounding | Grounded |
| For Location | Indoor, Outdoor |
| Hz | 50-400 Hz |
| Type | Pin, Sleeve |
| Finish | Polyester, Baked Powder Epoxy, Finish |
| Amperage Rating | 60 A |
| Length | 8.81 in |
| Width | 3.68 in |
| Frequency Rating | 50-400 Hz |
| Style | Style I |
| Series | VersaMate |
| Height | 3.68 in |
| Dimensions | 8.81 in x 3.68 in x 3.68 in |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Grommet Range | 0.65-1.50 |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Package Quantity | 1 |
