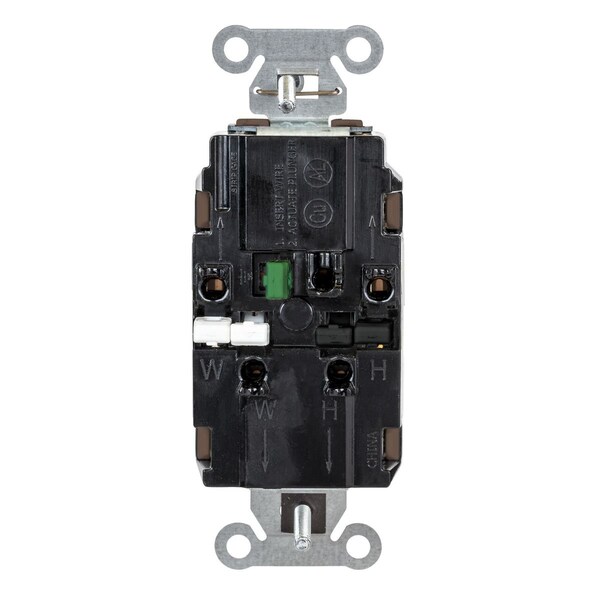

Receptacle, 1 hp, 125V AC, NEMA 5-20R
| Item | Receptacle |
|---|---|
| IP Rating | IP20 |
| Wiring Method | Back |
| Number of Wires | 3 |
| Phase | Single |
| Number of Gangs | 1 |
| Number of Poles | 2 |
| Standards | CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186 |
| Includes | Mounting Hardware |
| Horsepower Rating | 1 HP |
| Maximum Wire Size | 10 AWG |
| Face Plate Width | 1.6 in |
| UL 94 Flammability Rating | V-2 |
| Number of Outlets | 2 |
| Face Plate Height | 2.8 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grade | General Use |
| Market | Commercial |
| Minimum Operating Temperature | -40 deg F |
| Connection Orientation | Straight |
| Resistance Properties | Tamper Resistant |
| Minimum Wire Size | 14 AWG |
| Grounding | Grounded |
| Receptacle Type | Duplex |
| Contact Material | Copper Alloy |
| Visual Indicator Lights | Power Connected |
| Housing Material | Thermoplastic |
| Features | Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts |
| For Location | Indoor |
| For Environment | Dry |
| Maximum Operating Temperature | 167 deg F |
| Includes Mounting Hardware | Yes |
| Overall Depth | 1.4 in |
| Voltage Rating | 125 V |
| Current Rating | 20 A |
| Mount Type | Surface |
| NEMA Receptacle Configuration | 5-20R |
| Housing Color | Brown |
| Wire Connection Type | Push In |
| Reset Type | Not Applicable |
| Surge Protection | No |
| Hazardous Location Specification | Not Applicable |
| AFCI | No |
| Cover Type | No Cover |
| Flange Type | Non-Flanged |
| Polarized | Yes |
| NEMA Enclosure Rating | 1 |
| Shrouded | No |
| GFCI | No |
| Hub Type | Feed Through |
| Flange Shape | Not Applicable |
| Package Quantity | 1 |
