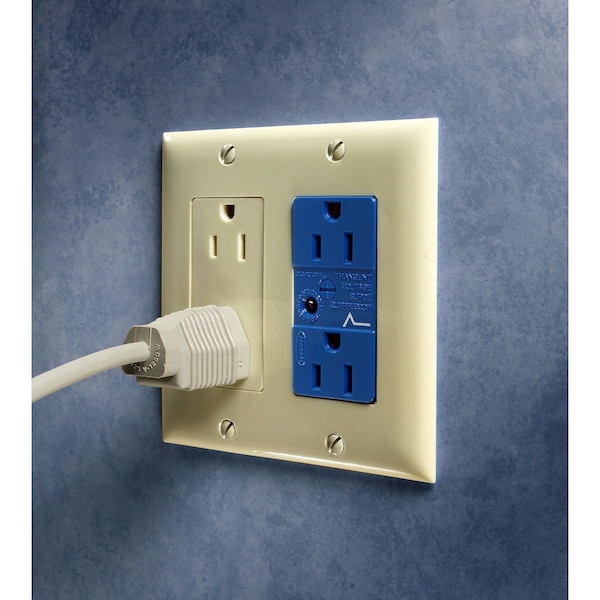

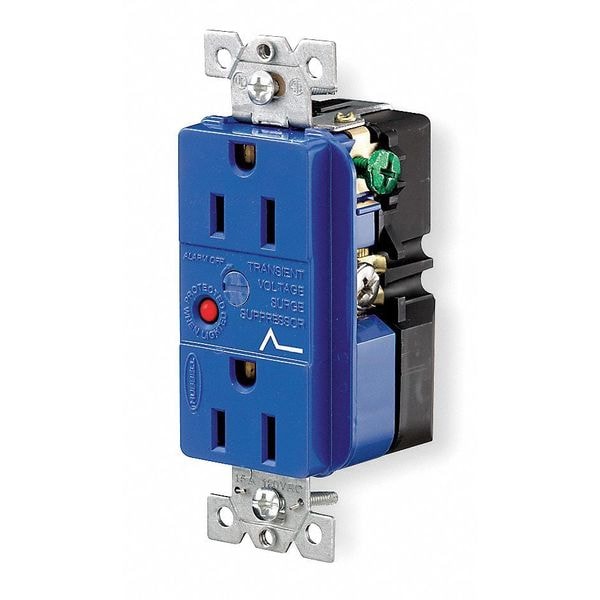

Toma de corriente, 15 amperios, 125V CA, montaje empotrado, salida dúplex decorativa, 5-15R, azul.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Blue |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | Yes |
| NEMA Configuration | 5-15 |
| Sub-Category | Duplex Receptacles |
| HP | 1/2 hp |
| Weather Resistant | No |
| Number of Gangs | 1 |
| Material | Nylon |
| Outlet Type | Decorator |
| Wiring Method | Back |
| Standards | CSA Certified C22.2 No. 42, UL 498, UL E2186 |
| Corrosion Resistant | No |
| Amps - Plugs and Receptacles | 15 |
| Special Features | Audible Alarm |
| Color | Blue |
| Phase | Single |
| Mounting Type | Flush |
| Voltage | 125VAC |
| Amps | 15 |
| Type | Duplex |
| Market | Industrial |
| NEMA Receptacle Configuration | 5-15R |
| Housing Material | Nylon |
| GFCI | No |
| Flange Type | Non-Flanged |
| Grade | Federal Specification |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| Grounding | Isolated Ground |
| Connection Orientation | Straight |
| Current Rating | 15 A |
| Cover Type | No Cover |
| For Location | Indoor |
| Shrouded | No |
| Surge Protection | Yes |
| Minimum Operating Temperature | 32 deg F |
| Horsepower Rating | 0.5 HP |
| Maximum Operating Temperature | 140 deg F |
| Mount Hole Center-to-Center Height | 3.3 in |
| Housing Color | Blue |
| Visual Indicator Lights | Power Connected |
| Includes | Grounding Clip |
| Face Plate Height | 2.6 in |
| AFCI | No |
| Face Plate Width | 1.3 in |
| Mount Type | Flush |
| NEMA Enclosure Rating | 1 |
| Overall Depth | 4 in |
| Receptacle Type | Duplex |
| Polarized | Yes |
| Alarm | Visual, Audible |
| Voltage/Power Rating | 125V AC |
| Clamping Plate | .031" Brass |
| Receptacle Grade | Standard |
| Listed To | UL Standards 498 Receptacles, Meets UL1449 TVSS |
| Device Base | Nylon |
| LED | Red |
| Auto Ground Clip | Stainless Steel |
| Mounting Screws | steel, Zinc-Plated |
| Contact Design | Tandem Modified Bypass |
| Alarm Muting Screw | Nylon |
| Amperage | 15 A |
| Grounding Screw | Steel |
| CSA Certified | To Specification C22.2 No. 42 |
| ANSI/IEEE | C62.41 (IEEE 587) |
| Power Contact | .031" (.8) Brass |
| Certifications | UL Listed File E2186 |
| Device Top | Nylon |
| Mounting Strap | .050" Steel-Zinc Coated |
| Receptacle Style | Duplex |
| Terminal Screws | #8-32 Brass |
| Poles and Wires | 2 Pole, 3 Wire |
| Package Quantity | 1 |
