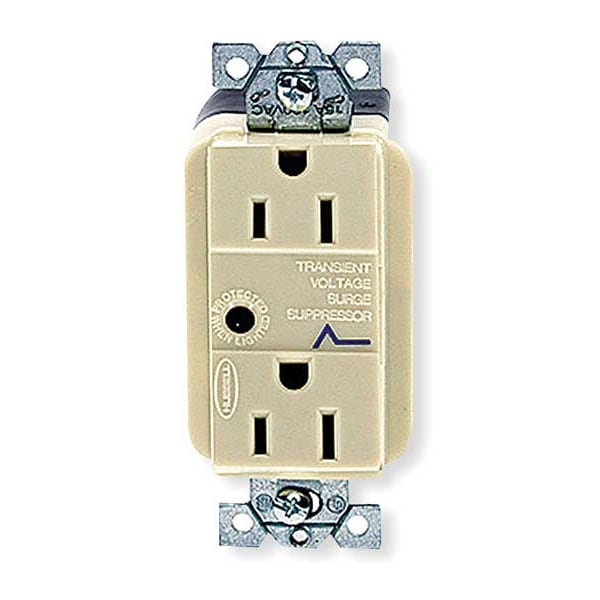

Receptacle, 15 A Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | Yes |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Outlet Type | Decorator |
| Sub-Category | Duplex Receptacles |
| NEMA Configuration | 5-15 |
| Wiring Method | Side |
| HP | 1/2 hp |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Color | Ivory |
| Phase | Single |
| Mounting Type | Flush |
| Amps - Plugs and Receptacles | 15 |
| Material | Nylon |
| Standards | CSA Certified C22.2 No. 42, UL 498, UL E2186 |
| Amps | 15 |
| Type | Duplex |
| NEMA Enclosure Rating | 1 |
| GFCI | No |
| Includes | Grounding Clip |
| Polarized | Yes |
| Cover Type | No Cover |
| Shrouded | No |
| Housing Material | Nylon |
| Housing Color | Ivory |
| Face Plate Width | 1.3 in |
| Grade | Federal Specification |
| Minimum Operating Temperature | 32 deg F |
| For Location | Indoor |
| UL 94 Flammability Rating | V-2 |
| Receptacle Type | Duplex |
| Voltage Rating | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Horsepower Rating | 0.5 HP |
| Visual Indicator Lights | Power Connected |
| Current Rating | 15 A |
| Face Plate Height | 2.6 in |
| AFCI | No |
| Surge Protection | Yes |
| Overall Depth | 4 in |
| Grounding | Grounded |
| Maximum Operating Temperature | 140 deg F |
| Mount Hole Center-to-Center Height | 3.3 in |
| Connection Orientation | Straight |
| Market | Commercial |
| Flange Type | Non-Flanged |
| Device Top | Nylon |
| Listed To | UL Standards 498 Receptacles, Meets UL1449 TVSS |
| Receptacle Grade | Standard |
| Voltage/Power Rating | 125V AC |
| Grounding Screw | Steel |
| ANSI/IEEE | C62.41 (IEEE 587) |
| Mounting Strap | .050" Steel-Zinc Coated |
| Contact Design | Tandem Modified Bypass |
| Device Base | Nylon |
| LED | Red |
| Alarm | Visual |
| Terminal Screws | #8-32 Brass |
| Auto Ground Clip | Stainless Steel |
| Power Contact | .031" (.8) Brass |
| CSA Certified | To Specification C22.2 No. 42 |
| Certifications | UL Listed File E2186 |
| Poles and Wires | 2 Pole, 3 Wire |
| Amperage | 15 A |
| Receptacle Style | Duplex |
| Mounting Screws | steel, Zinc-Plated |
| Clamping Plate | .031" Brass |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Indicator(s) Type | None |
| Series | Specification Grade |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Application | Decorator Duplex |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Frequency Rating | 60 Hz |
| Performance | Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| Item Type | Surge Protection Receptacles |
| Response Time | 5 |
| Display Size | Standard |
| Voltage Rating Description | 125 V |
| Nema Rating | 5-15R |
| Connectivity | Terminal Screws |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186 |
| Outlet | Straight Blade |
| Material - Mounting Hardware | Mounting Screws |
| Package Quantity | 1 |
