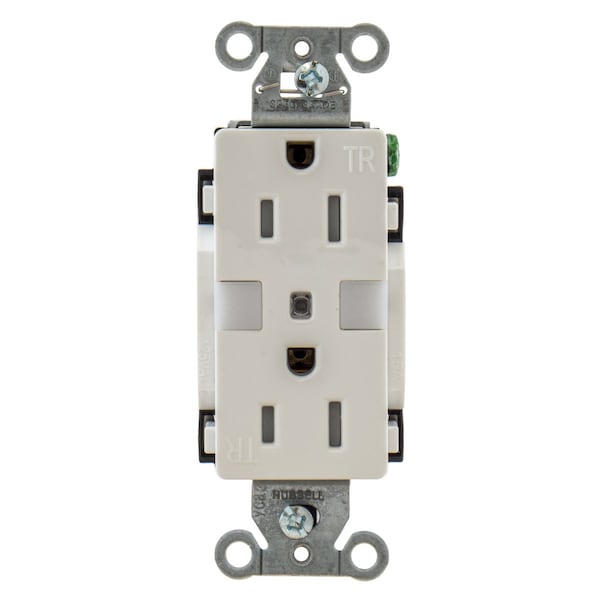

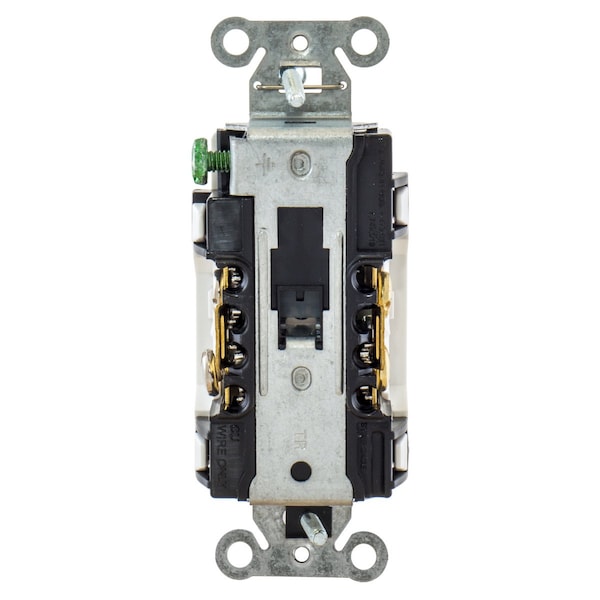

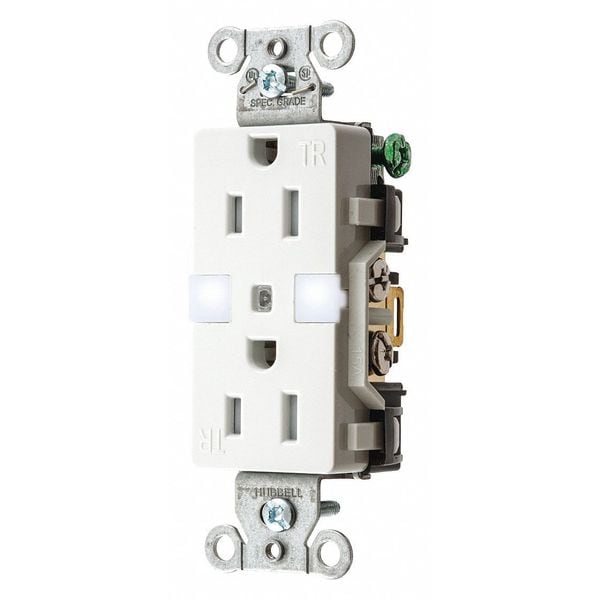

Receptacle, 15 A Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, White
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | CSA Certified C22.2, NEMA WD-6, UL 498 |
| HP | 1/2 hp |
| Phase | Single |
| Description | Grounding |
| Material | Nylon |
| Number of Gangs | 1 |
| Amps - Plugs and Receptacles | 15 |
| Sub-Category | Duplex Receptacles |
| Corrosion Resistant | No |
| Wiring Method | Back, Side |
| Color | White |
| Features | Night Light |
| Current Rating | 15 A |
| Grounding | Grounded |
| Flange Type | Non-Flanged |
| Mount Hole Center-to-Center Height | 2.7 in |
| Voltage Rating | 125V AC |
| Face Plate Height | 2.7 in |
| Market | Commercial |
| NEMA Receptacle Configuration | 5-15R |
| Minimum Operating Temperature | -40 deg F |
| NEMA Enclosure Rating | 1 |
| Receptacle Type | Decorator Duplex |
| Mount Type | Flush |
| Contact Material | Brass |
| Face Plate Width | 1.3 in |
| GFCI | No |
| Resistance Properties | Tamper Resistant |
| Overall Depth | 1.3 in |
| Surge Protection | No |
| Housing Color | White |
| Includes | Grounding Staple, Mounting Hardware |
| Cover Type | No Cover |
| Shrouded | No |
| Housing Material | Nylon |
| Grade | Federal Specification |
| Mount Hole Center-to-Center Width | 1.3 in |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 10 AWG |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 167 deg F |
| UL 94 Flammability Rating | V-2 |
| Polarized | Yes |
| AFCI | No |
| Horsepower Rating | 0.5 HP |
| Connection Orientation | Straight |
| Minimum Wire Size | 14 AWG |
| Package Quantity | 1 |
