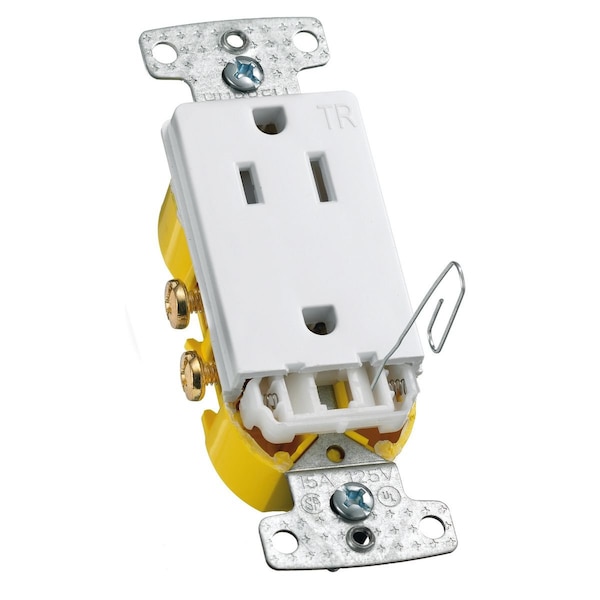

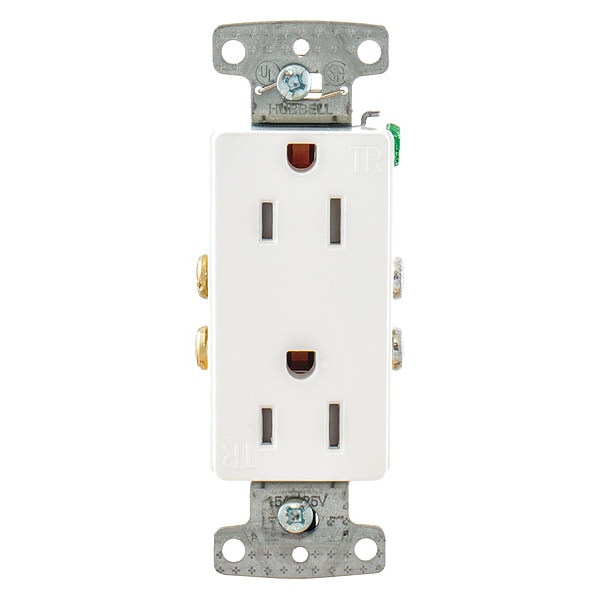

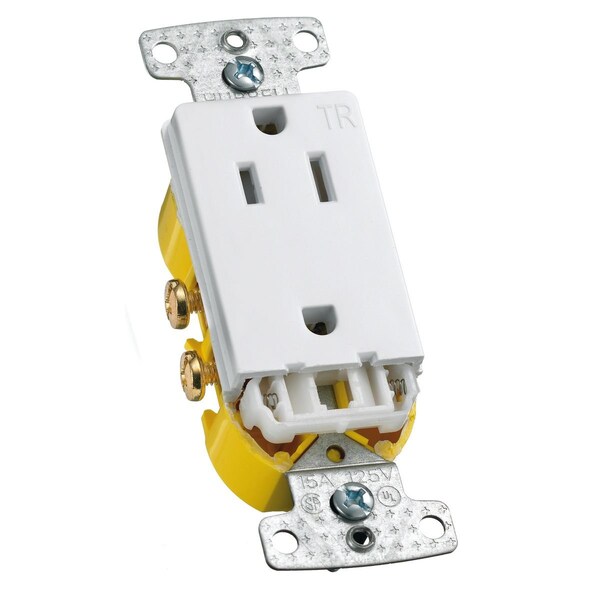

Receptáculo, 15 amperios, 125V CA, montaje al ras, salida dúplex decorativa, 5-15R, blanco.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Push |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Method | Back, Side |
| Number of Gangs | 1 |
| Standards | CSA Certified, UL Listed |
| Phase | Single |
| Housing Material | Thermoplastic |
| Wire Connection Type | Push In |
| Market | Residential |
| GFCI | No |
| Grounding | Grounded |
| Receptacle Type | Decorator Duplex |
| AFCI | No |
| Voltage Rating | 125V AC |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Polarized | Yes |
| Face Plate Height | 2.6 in |
| Surge Protection | No |
| NEMA Receptacle Configuration | 5-15R |
| Minimum Wire Size | 14 AWG |
| Connection Orientation | Straight |
| Face Plate Width | 1.3 in |
| Mount Type | Flush |
| Maximum Operating Temperature | 167 deg F |
| Current Rating | 15 A |
| For Location | Indoor |
| Maximum Wire Size | 12 AWG |
| Grade | General Use |
| NEMA Enclosure Rating | 1 |
| UL 94 Flammability Rating | V-2 |
| Minimum Operating Temperature | -40 deg F |
| Shrouded | No |
| Resistance Properties | Tamper Resistant |
| Housing Color | White |
| Package Quantity | 1 |
