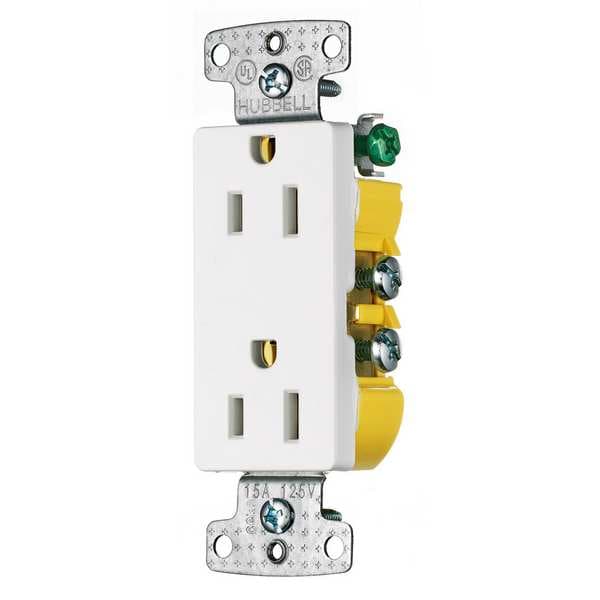

Receptacle, 15 A Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, White
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Push |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | CSA Certified, UL Listed |
| NEMA Configuration | 5-15 |
| Phase | Single |
| Color | White |
| Description | Grounding |
| Amps | 15 |
| Mounting Type | Flush |
| Weather Resistant | No |
| Outlet Type | Decorator |
| Wiring Method | Back |
| HP | 1/2 hp |
| Voltage | 125VAC |
| Number of Gangs | 1 |
| Sub-Category | Duplex Receptacles |
| Corrosion Resistant | No |
| Material | Thermoplastic |
| Type | Duplex |
| AFCI | No |
| Contact Material | Brass |
| Wire Connection Type | Screw Terminals |
| Housing Color | White |
| Face Plate Height | 2.6 in |
| Face Plate Width | 1-1/2 in |
| Grounding | Grounded |
| For Location | Indoor |
| Current Rating | 15 A |
| Mount Type | Flush |
| Includes | Mounting Hardware |
| Connection Orientation | Straight |
| Horsepower Rating | 0.5 HP |
| Cover Type | No Cover |
| Overall Depth | 4.2 in |
| Includes Mounting Hardware | Yes |
| Flange Type | Non-Flanged |
| Receptacle Type | Decorator Duplex |
| Surge Protection | No |
| NEMA Enclosure Rating | 1 |
| Voltage Rating | 125V AC |
| Maximum Wire Size | 12 AWG |
| Shrouded | No |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Center Height | 3.3 in |
| NEMA Receptacle Configuration | 5-15R |
| Polarized | Yes |
| Grade | General Use |
| Housing Material | Thermoplastic |
| GFCI | No |
| Market | Residential |
| Connectivity | Eight Push Wire Holes |
| Item Type | Decorator Duplex |
| Voltage Rating Description | 125 VAC |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 15 A |
| Wire Size | #14 AWG to #12 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Residential Receptacles |
| Amperage Rating | 15 A |
| Nema Rating | 5-15R |
| Wattage | 1875 |
| Package Quantity | 1 |
