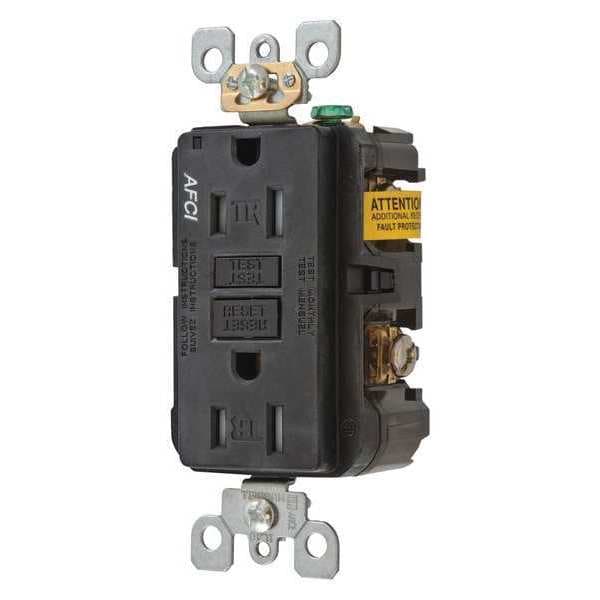

Receptáculo, 15 amperios, 125V CA, montaje a ras, toma de corriente estándar doble, color negro.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Arc Fault Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Special Features | Standard |
| Amps - Plugs and Receptacles | 15 |
| NEMA Configuration | 5-15 |
| HP | 1/2 hp |
| Weather Resistant | No |
| Corrosion Resistant | No |
| Description | Finder Groove |
| Voltage | 125VAC |
| Standards | CSA Certified C22.2 No. 42, CSA Certified Tech Letter No. M-02A, NEMA WD-6, UL 498, UL Federal Specification WC-596, UL1699A E366570 |
| NEMA Rating | 1 |
| Phase | Single |
| Wiring Method | Back, Side |
| Color | Black |
| Sub-Category | Duplex Receptacles |
| Mounting Type | Flush |
| Outlet Type | Duplex |
| Amps | 15 |
| IP Rating | IP20 |
| Number of Gangs | 1 |
| Material | Nylon |
| Self Testing | Yes |
| Mount Type | Flush |
| Housing Material | Nylon |
| Current Rating | 15 A |
| AFCI | Yes |
| Flange Type | Non-Flanged |
| Surge Protection | No |
| NEMA Enclosure Rating | 1 |
| Face Plate Height | 2.6 in |
| Connection Orientation | Straight |
| Face Plate Width | 1.7 in |
| UL 94 Flammability Rating | V-2 |
| Market | Commercial |
| Cover Type | No Cover |
| Shrouded | No |
| Resistance Properties | Tamper Resistant |
| Overall Depth | 1.4 in |
| Polarized | Yes |
| Grounding | Grounded |
| Housing Color | Black |
| Minimum Operating Temperature | -30 deg F |
| Horsepower Rating | 0.5 HP |
| GFCI | No |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| Maximum Operating Temperature | 150 deg F |
| Receptacle Type | Duplex |
| Mount Hole Center-to-Center Height | 3.8 in |
| Grade | General Use |
| NEMA Receptacle Configuration | 5-15R |
| Package Quantity | 1 |
