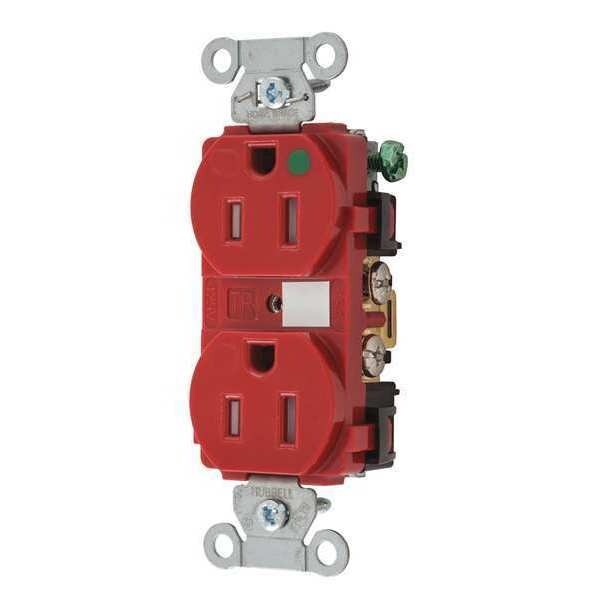

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Red
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Red |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Voltage | 125VAC |
| Material | Nylon |
| Wiring Method | Back, Side |
| HP | 1/2 hp |
| Description | Finder Groove |
| NEMA Rating | 1 |
| Ligature Resistant | Yes |
| Amps | 15 |
| Weather Resistant | No |
| Amps - Plugs and Receptacles | 15 |
| Outlet Type | Duplex |
| IP Rating | IP20 |
| Sub-Category | Duplex Receptacles |
| NEMA Configuration | 5-15 |
| Color | Red |
| Phase | Single |
| Standards | CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498 |
| Number of Gangs | 1 |
| Corrosion Resistant | No |
| Mounting Type | Flush |
| Width | 1.57 in |
| Height | 1.15 in |
| Minimum Operating Temperature | -40 deg F |
| GFCI | No |
| Receptacle Type | Duplex |
| Housing Material | Nylon |
| Flange Type | Non-Flanged |
| Connection Orientation | Straight |
| Market | Commercial |
| Face Plate Width | 1.6 in |
| Face Plate Height | 2.7 in |
| AFCI | No |
| NEMA Enclosure Rating | 1 |
| Minimum Wire Size | 14 AWG |
| Mount Type | Flush |
| Wire Connection Type | Screw Terminals |
| Grade | Hospital Grade Fed. Spec. |
| Horsepower Rating | 0.5 HP |
| Includes | Mounting Hardware |
| Cover Type | No Cover |
| Overall Depth | 1.2 in |
| Shrouded | No |
| Surge Protection | No |
| Grounding | Grounded |
| Polarized | Yes |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 167 deg F |
| UL 94 Flammability Rating | V-2 |
| Housing Color | Red |
| Current Rating | 15 A |
| NEMA Receptacle Configuration | 5-15R |
| Voltage Rating | 125V AC |
| Resistance Properties | Tamper Resistant |
| Includes Mounting Hardware | Yes |
| Item Type | Traditional Duplex |
| Current / Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Receptacle |
| Connectivity | Back and Side Wired |
| Wattage | 1875 W |
| Horsepower - Maximum | 0.5 |
| Length | 3.28 in |
| Material - Mounting Hardware | Screw Mounting |
| Wire Size | #14 AWG to #10 AWG |
| Amperage Rating | 15 A |
| Dimensions | 3.28 in x 1.57 in x 1.15 in |
| Application | Hubbell-Pro Heavy Duty Hospital Grade |
| Style | Smooth Face |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | Hubbell-Pro |
| Voltage Rating Description | 125 V |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
