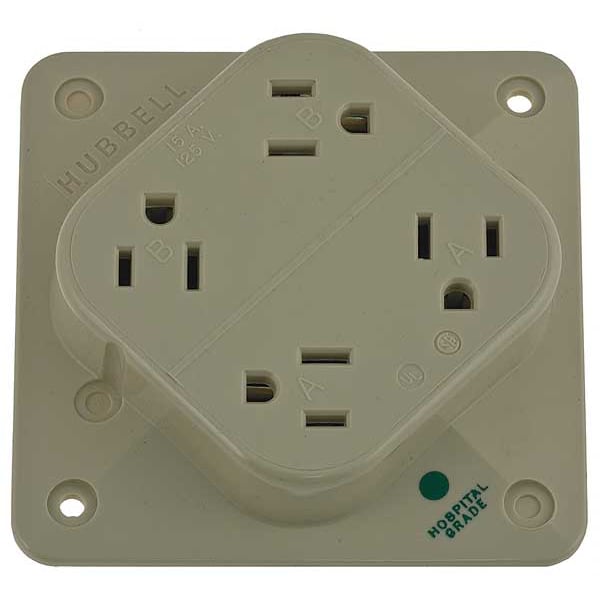

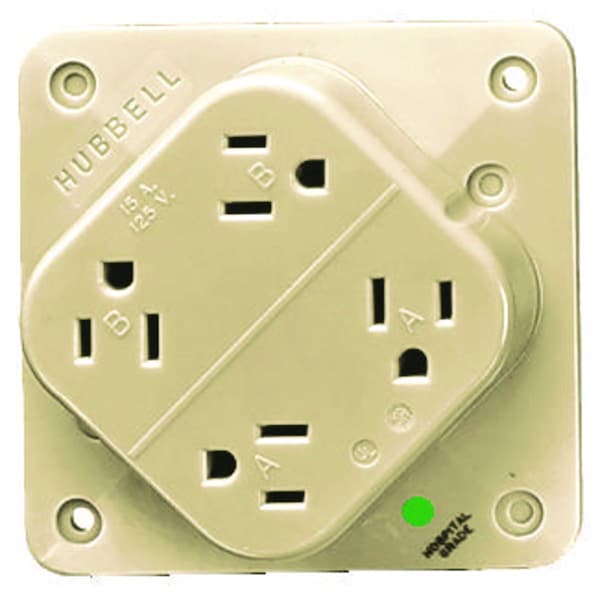

Receptacle, 15 A Amps, 125V AC, Surface Mount, Quad Outlet, 5-15R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Quad |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Surface |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186 |
| Sub-Category | Four Outlet Receptacles |
| Mounting Type | Surface |
| Amps | 15 |
| Voltage | 125VAC |
| Phase | Single |
| Weather Resistant | No |
| Outlet Type | Quad |
| Color | Ivory |
| HP | 1/2 hp |
| Number of Gangs | 2 |
| Material | polycarbonate |
| Corrosion Resistant | No |
| Wiring Method | Back |
| Type | 4 Plex |
| Polarized | Yes |
| Maximum Wire Size | 12 AWG |
| Face Plate Height | 4.3 in |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Impact Resistant |
| Housing Material | Polycarbonate |
| Number of Outlets | 4 |
| Current Rating | 15 A |
| Housing Color | Ivory |
| Connection Orientation | Straight |
| Mount Hole Center-to-Center Width | 3.4 in |
| Voltage Rating | 125V AC |
| GFCI | No |
| Includes | 4-PLEX Adapter Plate, 4-PLEX Portable Box |
| NEMA Enclosure Rating | 1 |
| Horsepower Rating | 0.5 HP |
| Grade | Hospital Grade Fed. Spec. |
| UL 94 Flammability Rating | V-2 |
| Surge Protection | No |
| For Location | Indoor |
| Mount Hole Center-to-Center Height | 3.4 in |
| Grounding | Grounded |
| AFCI | No |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 167 deg F |
| NEMA Receptacle Configuration | 5-15R |
| Cover Type | No Cover |
| Contact Material | Brass |
| Receptacle Type | Quad |
| Wire Connection Type | Screw Terminals |
| Mount Type | Surface |
| Shrouded | No |
| Flange Type | Non-Flanged |
| Overall Depth | 0.9 in |
| Face Plate Width | 4.3 in |
| Terminal Accommodation | #14-#12 AWG copper stranded or solid conductor only |
| Device Color | Ivory |
| Dielectric Voltage | Withstands 2,000V minimum |
| 4-Plex Type | Standard |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Poles and Wires | 2 Pole, 3 Wire |
| Amperage | 15 A |
| Flammability | UL 94V-2 |
| Current Interrupting | Capable of withstanding a fault level of 1000A, per UL498 |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Package Quantity | 1 |
