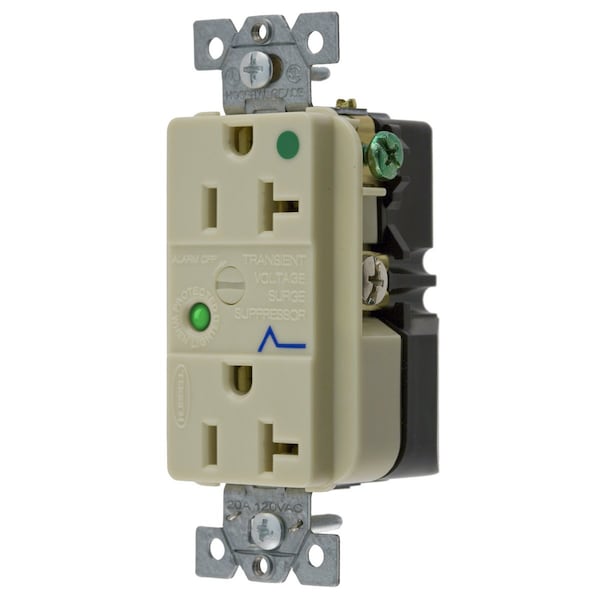

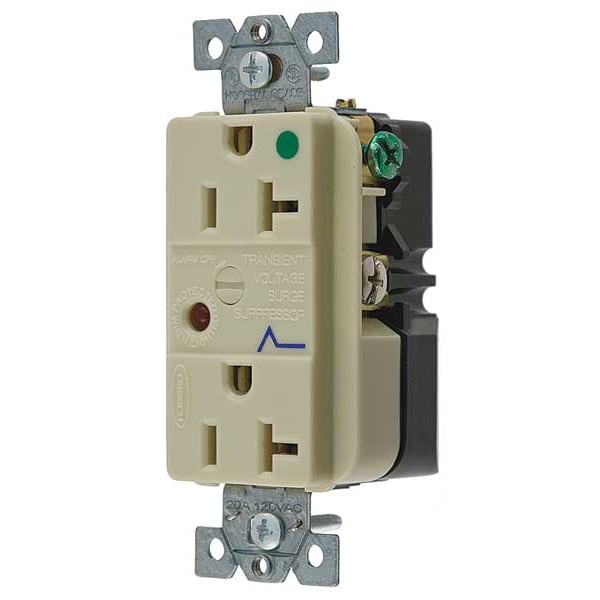

Receptáculo, 20 A Amperios, 125V CA, Montaje al Ras, Salida Dúplex Decorativa, 5-20R, Marfil
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | Yes |
| Color | Ivory |
| Weather Resistant | No |
| Sub-Category | Duplex Receptacles |
| Description | Grounding |
| Special Features | Audible Alarm |
| Mounting Type | Flush |
| Number of Gangs | 1 |
| Amps | 20 |
| NEMA Configuration | 5-20 |
| HP | 1 hp |
| Wiring Method | Side |
| Outlet Type | Decorator |
| Material | Nylon |
| Phase | Single |
| Standards | CSA Certified C22.2 No. 42, UL 498, UL E2186 |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Type | Duplex |
| For Location | Indoor |
| Shrouded | No |
| NEMA Receptacle Configuration | 5-20R |
| Receptacle Type | Duplex |
| Surge Protection | Yes |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Flange Type | Non-Flanged |
| Housing Color | Ivory |
| Maximum Operating Temperature | 140 deg F |
| Housing Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Horsepower Rating | 1 HP |
| Voltage Rating | 125V AC |
| Face Plate Width | 1.3 in |
| Face Plate Height | 2.6 in |
| UL 94 Flammability Rating | V-2 |
| NEMA Enclosure Rating | 1 |
| Overall Depth | 4 in |
| Cover Type | No Cover |
| Polarized | Yes |
| Visual Indicator Lights | Power Connected |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grade | Hospital Grade Fed. Spec. |
| AFCI | No |
| Resistance Properties | Impact Resistant |
| GFCI | No |
| Minimum Operating Temperature | 32 deg F |
| Mount Type | Flush |
| Poles and Wires | 2 Pole, 3 Wire |
| Device Grade | Heavy Duty Spec Grade |
| Amperage | 20 A |
| Package Quantity | 1 |
