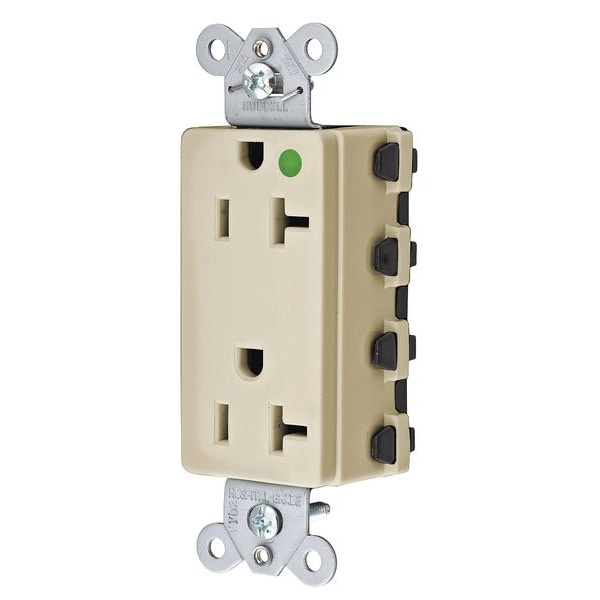

Contacto eléctrico, 20 amperios, 125V CA, montaje al ras, tomacorriente doble decorativo, 5-20R, marfil.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Corrosion Resistant | No |
| Mounting Type | Flush |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Outlet Type | Decorator |
| Color | Ivory |
| NEMA Configuration | 5-20 |
| Amps | 20 |
| Weather Resistant | No |
| Sub-Category | Duplex Receptacles |
| Wiring Method | Back |
| Number of Gangs | 1 |
| IP Rating | IP20 |
| Material | Nylon |
| Phase | Single |
| Voltage | 125VAC |
| Height | 1.1 in |
| Width | 1.64 in |
| Type | Style Line |
| Minimum Operating Temperature | -40 deg F |
| GFCI | No |
| NEMA Receptacle Configuration | 5-20R |
| Wire Connection Type | Modular Wiring |
| Maximum Wire Size | 12 AWG |
| Face Plate Width | 1.6 in |
| Grade | Hospital Grade Fed. Spec. |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Maximum Operating Temperature | 167 deg F |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Current Rating | 20 A |
| Contact Material | Brass |
| Surge Protection | No |
| UL 94 Flammability Rating | V-2 |
| AFCI | No |
| Shrouded | No |
| Housing Color | Ivory |
| For Location | Indoor |
| Includes Mounting Hardware | Yes |
| NEMA Enclosure Rating | 1 |
| Mount Hole Center-to-Center Height | 3.3 in |
| Housing Material | Nylon |
| Face Plate Height | 2.6 in |
| Includes | Grounding Clip, Mounting Hardware |
| Horsepower Rating | 1 HP |
| Grounding | Grounded |
| Overall Depth | 1.1 in |
| Cover Type | No Cover |
| Current Interrupting | Receptacle certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Mounting Strap | Galvanized steel |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C (without impact) |
| Ground Contacts | Brass |
| Base | PBT |
| Face | Nylon |
| Automatic Self-grounding Staple | Stainless steel |
| Flammability | UL 94V-2 |
| Power Contacts | Brass |
| Device Color | Ivory |
| Mounting Screws | Zinc plated steel |
| Display Size | Standard Sized Product |
| Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125 V |
| Length | 3.28 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in x 1.64 in x 1.1 in |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Conductors | 3-Wire Grounding |
| Nema Rating | 5-20R |
| Connectivity | Connectorized |
| Horsepower - Maximum | 1 |
| Style | Style Line Decorator |
| Item Type | Style Line Decorator |
| Wattage | 2500 W |
| Wire Size | #12 AWG |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Series | Hospital Grade |
| Application | Hospital Grade |
| Package Quantity | 1 |
