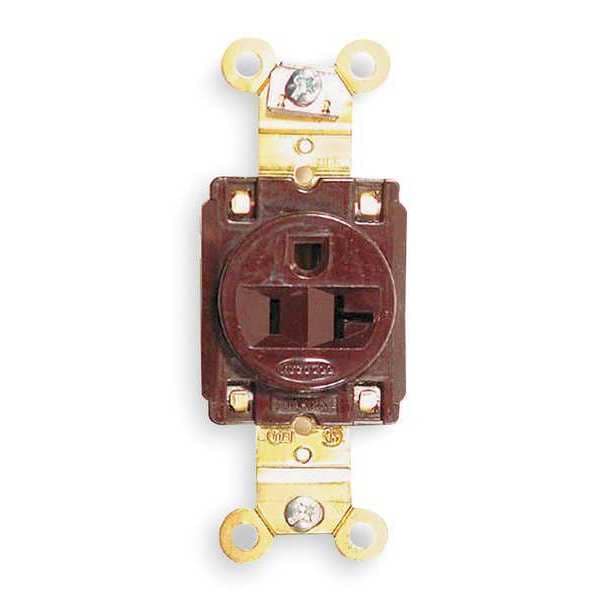

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Brown
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Harsh and Heavy Use Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Color | Brown |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Voltage | 125VAC |
| Amps - Plugs and Receptacles | 20 |
| Wiring Method | Back, Side |
| Outlet Type | Single |
| HP | 1 hp |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Corrosion Resistant | No |
| Material | Nylon/Reinforced PET |
| Mounting Type | Flush |
| Sub-Category | Single Receptacles |
| Amps | 20 |
| Phase | Single |
| Description | Smooth, Grounding |
| Type | Single |
| Maximum Wire Size | 10 AWG |
| Cover Type | No Cover |
| Receptacle Type | Single |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-Center Height | 3.3 in |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| NEMA Receptacle Configuration | 5-20R |
| Voltage Rating | 125V AC |
| Contact Material | Nickel-Plated Brass |
| AFCI | No |
| UL 94 Flammability Rating | V-2, V-0 |
| Maximum Operating Temperature | 167 deg F |
| Current Rating | 20 A |
| NEMA Enclosure Rating | 1 |
| Minimum Wire Size | 12 AWG |
| Horsepower Rating | 1 HP |
| Housing Material | Nylon |
| Resistance Properties | Impact Resistant |
| Mount Type | Flush |
| Flange Type | Non-Flanged |
| Grade | Federal Specification |
| Face Plate Height | 1.9 in |
| Face Plate Width | 1.6 in |
| Grounding | Grounded |
| Minimum Operating Temperature | -40 deg F |
| Polarized | Yes |
| For Location | Indoor |
| Shrouded | No |
| Housing Color | Brown |
| Connection Orientation | Straight |
| Overall Depth | 1.2 in |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Market | Industrial |
| Surge Protection | No |
| Current Interrupting | Certified for current interrupting at full rated current |
| Poles and Wires | 2 Pole, 3 Wire Grounding |
| Receptacle Style | Single |
| Approvals | UL |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Rating | 20A 125V, 2p3w |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Flammability | Top: UL 94V-2, Base: UL 94V-0 |
| Blade Type | Straight Blade |
| Device Color | Brown |
| Package Quantity | 1 |
