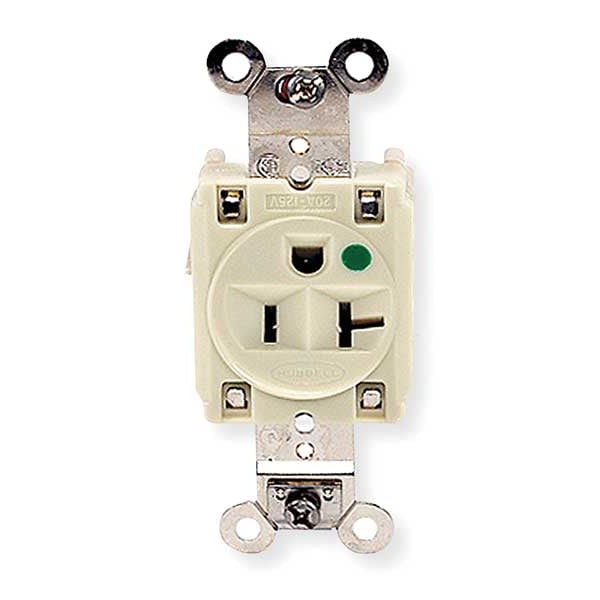

Receptáculo, 20 Amperes, 125V CA, Montaje al Ras, Salida Única, 5-20R, Marfil
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Color | Ivory |
| Sub-Category | Single Receptacles |
| Outlet Type | Single |
| Corrosion Resistant | No |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Weather Resistant | No |
| Mounting Type | Flush |
| Voltage | 125VAC |
| HP | 1 hp |
| Wiring Method | Back, Side |
| Description | Finder Groove, Grounding |
| Phase | Single |
| Amps | 20 |
| Material | Impact Modified PBT/Reinforced PET |
| Number of Gangs | 1 |
| IP Rating | IP20 |
| Width | 1.63 in |
| Height | 1.19 in |
| Type | Single |
| Overall Depth | 1.2 in |
| AFCI | No |
| Flange Type | Non-Flanged |
| Mount Hole Center-to-Center Height | 3.3 in |
| Face Plate Height | 1.9 in |
| UL 94 Flammability Rating | V-2, V-0, 5VA |
| Grounding | Grounded |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover |
| For Location | Indoor |
| NEMA Receptacle Configuration | 5-20R |
| Minimum Operating Temperature | -40 deg F |
| Grade | Hospital Grade Fed. Spec. |
| Horsepower Rating | 1 HP |
| NEMA Enclosure Rating | 1 |
| Shrouded | No |
| Maximum Wire Size | 10 AWG |
| Face Plate Width | 1.6 in |
| Housing Color | Ivory |
| Minimum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| Polarized | Yes |
| Voltage Rating | 125V AC |
| Cover Type | No Cover |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 167 deg F |
| GFCI | No |
| Receptacle Type | Single |
| Mount Type | Flush |
| Contact Material | Brass |
| Surge Protection | No |
| Housing Material | Nylon |
| Current Rating | 20 A |
| Includes Mounting Hardware | Yes |
| Poles and Wires | 2 Pole, 3 Wire |
| Device Color | Ivory |
| Dielectric Voltage | Withstands 2,000V minimum |
| Amperage | 20 A |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Terminal Accommodation | #12-#10 AWG stranded, solid copper wire only |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Flammability | Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA |
| Nema Rating | 5-20R |
| Display Size | Standard Sized Product |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Dimensions | 3.28 in x 1.63 in x 1.19 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Back and Side Wired Screw Terminals |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #12 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Single Receptacle |
| Length | 3.28 in |
| Style | Finder Groove Face |
| Wattage | 2500 W |
| Horsepower - Maximum | 1 |
| Amperage Rating | 20 A |
| Series | Hospital Grade |
| Application | Extra Heavy Duty Hospital Grade |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
