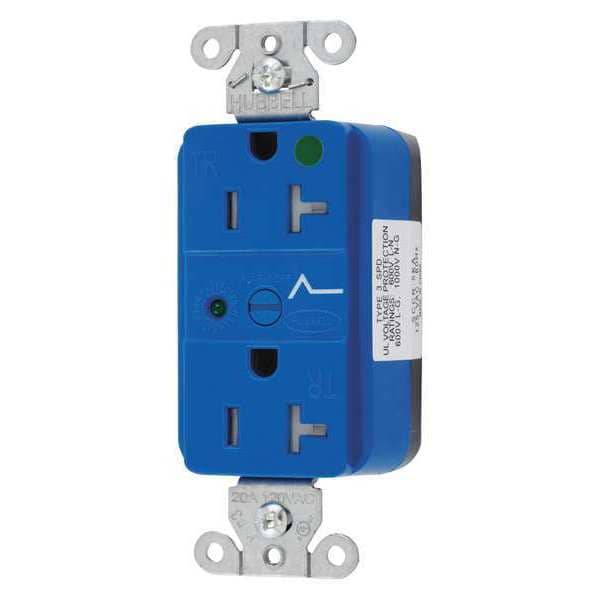

Contacto, 20 amperios, 125V CA, montaje empotrado, toma de corriente doble estándar, 5-20R, azul.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Blue |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Sub-Category | Duplex Receptacles |
| Special Features | Standard |
| Corrosion Resistant | No |
| Voltage | 125VAC |
| Amps | 20 |
| Material | Nylon |
| NEMA Configuration | 5-20 |
| Outlet Type | Duplex |
| Description | Finder Groove |
| NEMA Rating | 1 |
| Standards | CSA Certified C22.2 No. 42, UL 498, UL E2186 |
| Phase | Single |
| Mounting Type | Flush |
| Number of Gangs | 1 |
| Amps - Plugs and Receptacles | 20 |
| Color | Blue |
| IP Rating | IP20 |
| Wiring Method | Back |
| Weather Resistant | No |
| HP | 1 hp |
| Width | 1.77 in |
| Height | 1.1 in |
| GFCI | No |
| NEMA Receptacle Configuration | 5-20R |
| Housing Material | Nylon |
| Market | Commercial |
| Maximum Wire Size | 12 AWG |
| AFCI | No |
| Face Plate Height | 2.6 in |
| NEMA Enclosure Rating | 1 |
| Minimum Operating Temperature | -40 deg F |
| Flange Type | Non-Flanged |
| Grounding | Grounded |
| Hub Type | Feed Through |
| Polarized | Yes |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 167 deg F |
| For Location | Indoor |
| Resistance Properties | Tamper Resistant |
| Receptacle Type | Duplex |
| Surge Protection | Yes |
| Contact Material | Brass |
| Face Plate Width | 1.8 in |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Current Rating | 20 A |
| Shrouded | No |
| Mount Type | Flush |
| UL 94 Flammability Rating | V-2 |
| Grade | Hospital Grade Fed. Spec. |
| Overall Depth | 1-1/2 in |
| Wire Connection Type | Modular Wiring |
| Housing Color | Blue |
| Includes | Wall Plate or Weatherproof Cover |
| Mount Hole Center-to-Center Height | 3.3 in |
| Type | Surge Protection Receptacle |
| Dimensions | 3.28 in x 1.77 in x 1.1 in |
| Current / Amperage Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.28 in |
| Display Size | Standard Sized Product |
| Number Of Conductors | 3-Wire Grounding |
| Item Type | Smooth Face |
| Material - Mounting Hardware | Screw Mounting |
| Style | Smooth Face |
| Horsepower - Maximum | 1 |
| Wire Size | #12 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 20 A |
| Application | Hospital Grade |
| Connectivity | Connectorized |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
| Series | Hospital Grade |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
