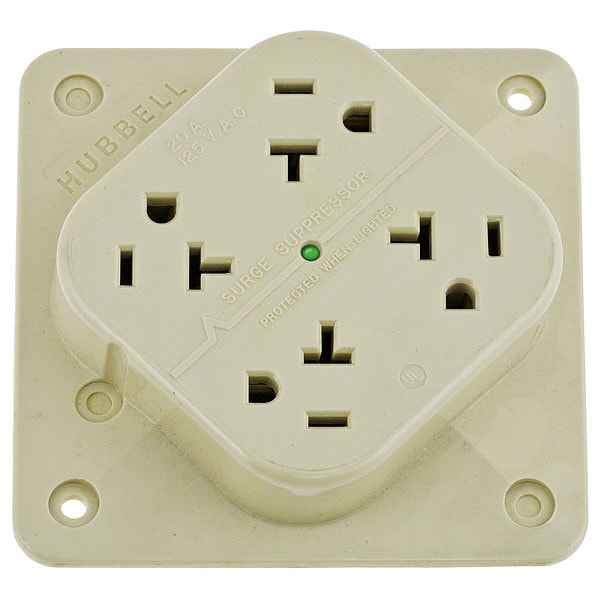

Receptacle, 20 A Amps, 125V AC, Surface Mount, Quad Outlet, 5-20R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Quad |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Surface |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Amps - Plugs and Receptacles | 20 |
| Voltage | 125VAC |
| Mounting Type | Surface |
| Number of Gangs | 2 |
| Material | polycarbonate |
| HP | 1 hp |
| Color | Ivory |
| Outlet Type | Quad |
| Sub-Category | Four Outlet Receptacles |
| Amps | 20 |
| Weather Resistant | No |
| Phase | Single |
| Standards | CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186 |
| Corrosion Resistant | No |
| Wiring Method | Back |
| Height | 4.3 in |
| Width | 0.92 in |
| Mount Hole Center-to-Center Height | 3.4 in |
| GFCI | No |
| For Location | Indoor |
| Minimum Operating Temperature | -40 deg F |
| Voltage Rating | 125V AC |
| Number of Outlets | 4 |
| Face Plate Height | 4.3 in |
| Polarized | Yes |
| Connection Orientation | Straight |
| Wire Connection Type | Screw Terminals |
| NEMA Enclosure Rating | 1 |
| Flange Type | Non-Flanged |
| AFCI | No |
| Current Rating | 20 A |
| Includes | 4-PLEX Adapter Plate, 4-PLEX Portable Box |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-2 |
| NEMA Receptacle Configuration | 5-20R |
| Housing Color | Ivory |
| Overall Depth | 4.3 in |
| Maximum Wire Size | 12 AWG |
| Mount Hole Center-to-Center Width | 3.4 in |
| Maximum Operating Temperature | 167 deg F |
| Contact Material | Brass |
| Face Plate Width | 4.3 in |
| Shrouded | No |
| Surge Protection | Yes |
| Receptacle Type | Quad |
| Housing Material | Polycarbonate |
| Cover Type | No Cover |
| Market | Commercial |
| Grade | Federal Specification |
| Horsepower Rating | 1 HP |
| Mount Type | Surface |
| Device Color | Ivory |
| Other Available Colors | Blue |
| Dielectric Voltage | Withstands 2,000V minimum |
| Rating | 20A 125V |
| NEMA No. | 5 to 20 R |
| Certification | UL Listed File E2186 Listed to UL Standard 498 Receptacles, 1449 Transient Voltage Surge Supressors. CSA Certified to Specification C22.2 No. 42M |
| Receptacle Grade | Heavy Duty Spec Grade |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Amperage | 20 A |
| Horsepower | 1 |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts Material | Brass |
| Receptacle Style | Quad Surge Suppression Receptacle |
| Flammability | UL 94 V-2 |
| Terminal Accommodation | #12 AWG stranded, solid copper conductor only |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Standard | NEMA |
| Type | Grounding, 3 Wire, 2 Pole |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Current Interrupting | Capable of withstanding a fault level of 1000A, per UL498 |
| Top Material | Polycarbonate |
| Base Material | Polycarbonate |
| Dimensions | 4.3 in x 0.92 in x 4.3 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Terminal Screws |
| Item Type | Surge Protection Receptacles |
| Nema Rating | 5-20R |
| Dielectric Strength | Withstands 2,000V minimum |
| Current / Amperage Rating | 20 A |
| Frequency Rating | 60 Hz |
| Indicator(s) Type | LED Only |
| Display Size | Standard |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | Surge Suppression |
| Amperage Rating | 20 A |
| Outlet | Straight Blade |
| Response Time | 5 |
| Wire Size | #12 AWG |
| Horsepower - Maximum | 1 |
| Material - Mounting Hardware | Mounting Screws |
| Performance | Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 4.3 in |
| Voltage Rating Description | 125 V |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant |
| Application | 4-Plex with LED |
| Series | 4-Outlet Receptacle |
| Package Quantity | 1 |
