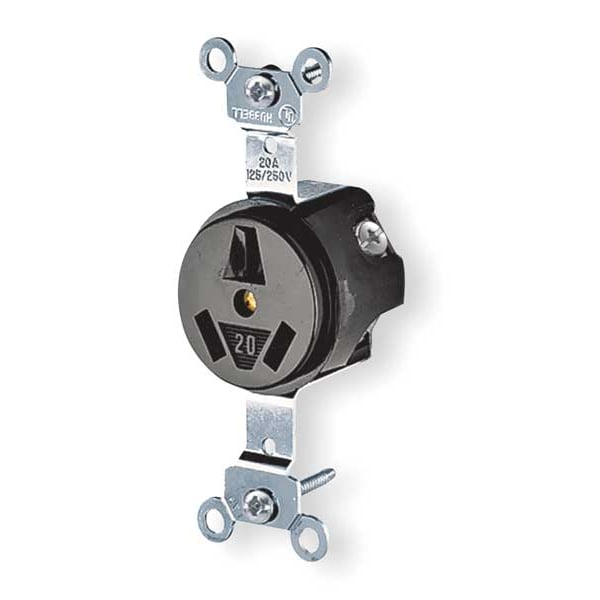

Receptacle, 20 A Amps, 250V AC, Flush Mount, Single Outlet, 10-20R, Black
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 10-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Power Indicator | No |
| Mounting Type | Flush |
| Boot Code | A |
| Number of Gangs | 1 |
| Amps - Plugs and Receptacles | 20 |
| Voltage | 250VAC |
| Material | Phenolic |
| IP Rating | IP20 |
| Outlet Type | Single |
| Standards | CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706 |
| Corrosion Resistant | No |
| Sub-Category | Single Receptacles |
| Amps | 20 |
| Color | Black |
| Wiring Method | Back, Side |
| HP | 1 hp |
| NEMA Configuration | 10-20 |
| Accessory Group | A |
| Weather Resistant | No |
| Phase | Single |
| Height | 0.97 in |
| Width | 1.39 in |
| Type | Straight Blade |
| Overall Depth | 1 in |
| Includes Mounting Hardware | Yes |
| Housing Color | Black |
| For Location | Indoor |
| Face Diameter | 1.4 in |
| Surge Protection | No |
| Flange Type | Non-Flanged |
| Market | Industrial |
| Shrouded | No |
| Mount Type | Flush |
| Mount Hole Center-to-Center Height | 3.3 in |
| NEMA Receptacle Configuration | 10-20R |
| Maximum Operating Temperature | 167 deg F |
| Additional Electrical Protection | Standard Protection |
| Maximum Wire Size | 10 AWG |
| Housing Material | Nylon |
| Wire Connection Types | Screw Terminals |
| Minimum Operating Temperature | -40 deg F |
| Grade | Federal Specification |
| Grounding | Non-Grounded |
| Current Rating | 20 A |
| Cover Type | No Cover |
| Contact Material | Brass |
| Receptacle Type | Single |
| Includes | Grounding Clip, Mounting Hardware |
| UL 94 Flammability Rating | V-1 |
| Number of Poles & Wires | 3 Pole / 3 Wire |
| Additional Electrical Protections | Standard Protection |
| AFCI | No |
| Key Resistance Properties | Standard Resistance |
| Horsepower Rating | 2 HP |
| Minimum Wire Size | 14 AWG |
| Voltage Rating | 125/250V AC |
| Connection Orientation | Straight |
| NEMA Enclosure Rating | 1 |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Polarized | Yes |
| Poles and Wires | 3 Pole, 3-Wire Non-Grounding |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Face Shape | Traditional |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Strap Material | .050" Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Device Color | Black |
| Cord Accomodation | .310"-.430"(7.9-11.9) |
| Rating | 20A, 125/250V |
| Horsepower | 2 |
| Mounting Screw Material | Steel-Zinc Plated |
| NEMA No. | 10 to 20 R |
| IP Suitability | IP20 |
| Face Style | Finder Groove |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Top Material | Phenolic |
| Current Interrupting | Certified for current interrupting at full rated current |
| Flammability | UL 94 V-1 or better, UL 94 V2. |
| Amperage | 20 A |
| Receptacle Grade | Compact Spec Grade |
| Power Contacts Material | Brass |
| Receptacle Style | Single |
| Certification | UL Listed, File E2186, Listed to UL Standard 498 |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Standard | NEMA |
| Base Material | Phenolic |
| Application | Heavy Duty |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Item Type | Single |
| Display Size | Standard Sized Product |
| Connectivity | Back and Side Wired |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Wire Size | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V, 250 V |
| Material - Mounting Hardware | Screw Mounting |
| Series | Extra Heavy Duty |
| Horsepower - Maximum | 2 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-1 or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Nema Rating | 10-20R |
| Dimensions | 3.28 in x 1.39 in x 0.97 in |
| Length | 3.28 in |
| Wattage | 5000 W |
| Package Quantity | 1 |
