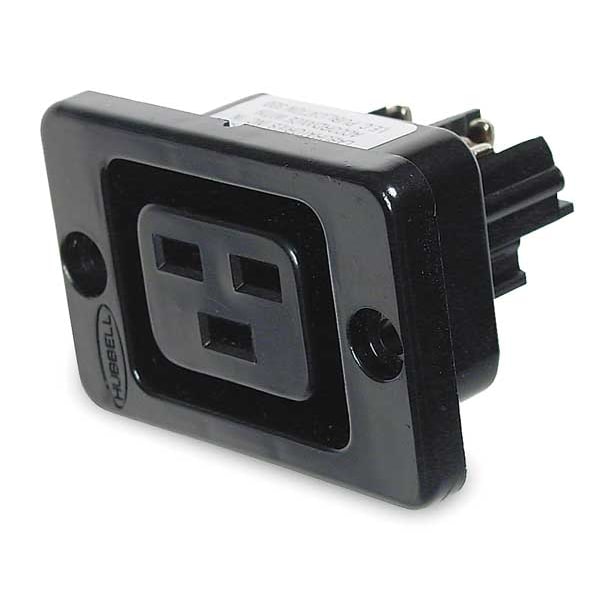

Receptáculo, 20 amperios, 250V CA, montaje en panel, salida única, no NEMA, negro.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | Non-NEMA |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Terminal Screw |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Amps - Plugs and Receptacles | 20 |
| Color | Black |
| Number of Gangs | 1 |
| Outlet Type | Single |
| Amps | 20 |
| Voltage | 250VAC |
| Wiring Method | Back |
| Mounting Type | Panel |
| Standards | CSA Certified 17337, UL E2186 |
| Corrosion Resistant | No |
| NEMA Configuration | Non-NEMA |
| Material | Nylon |
| Weather Resistant | No |
| Phase | Single |
| Height | 1.52 in |
| Width | 1.89 in |
| Type | IEC |
| Maximum Wire Size | 12 AWG |
| Maximum Operating Temperature | 167 deg F |
| Includes | Mounting Hardware |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black |
| Voltage Rating | 250V AC |
| Minimum Operating Temperature | -40 deg F |
| GFCI | No |
| Cover Type | No Cover |
| Overall Depth | 1-1/2 in |
| Minimum Wire Size | 16 AWG |
| Mount Type | Flush |
| Flange Type | Non-Flanged |
| Housing Material | Nylon |
| Surge Protection | No |
| Market | Industrial |
| Contact Material | Brass |
| Connection Orientation | Straight |
| Receptacle Type | Single |
| Grade | General Use |
| NEMA Enclosure Rating | 1 |
| AFCI | No |
| Current Rating | 16/20 A |
| Wire Connection Type | Screw Terminals |
| Mount Hole Center-to-Center Width | 1.9 in |
| For Location | Indoor |
| Face Plate Height | 1-1/2 in |
| UL 94 Flammability Rating | V-0 |
| Resistance Properties | Impact Resistant |
| Polarized | Yes |
| Standard | IEC 320 |
| Certification | UL Listed 20A 250V AC-File No. E2186; CSA certified 20A 250V AC-File No 17337, TUV certified at 16A 250V AC File No. E0077112.07. |
| Device Color | Black |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Flammability | UL 94 V0 |
| Terminal Accommodation | North American-#16AWG-#12AWG, International-1.55mm²-2.5mm². |
| Retainer Material | Nylon-Black |
| IEC Product | Receptacle |
| Amperage | 20A/16A |
| Terminal Screw Material | Steel |
| Ground Screw Material | Steel |
| Base Material | Nylon |
| Contact Blades Material | .040" (1.0) Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts Material | Brass |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Poles and Wires | 2-pole + earth. |
| Rating | 16A 250V AC for European service; 20A 250V AC for North American service |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 1.25 A |
| Current / Amperage Rating | 1.25 A |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Terminals |
| Wire Size | North American-#16AWG-#12AWG; International-1.55mm²-2.5mm². |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Industry Standard(s) | CSA certified 20A 250V AC-File No. 17337 UL Listed 20A 250V AC-File No. E2186 |
| Item Type | IEC Appliance Coupler Single |
| Dimensions | 1.41 in x 1.89 in x 1.52 in |
| Display Size | Standard Sized Product |
| Wattage | 7500 W |
| Voltage Rating Description | 250 V |
| Application | Heavy Duty |
| Performance | Electrical:Dielectric Voltage Withstands 2,000V minimum,Rating 16A 250V AC for European service 20A 250V AC for ,North American service Mechanical:Terminal Accommodation North American to #16-12 AWG stranded or solid copper conductor only. International to 1.55mm²-2.5mm² ,Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental:Flammability UL 94 VO ,Operating Temperatures Maximum continuous 75°C minimum -40°C (w/o impact) |
| Dielectric Strength | Withstands 2,000V minimum |
| Length | 1.41 in |
| Nema Rating | Non-NEMA |
| Package Quantity | 1 |
