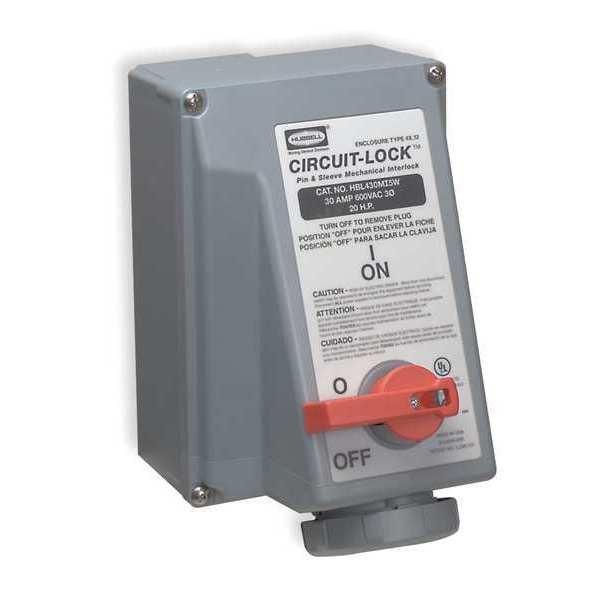

Receptacle, 30 A, 600 V
| Item | Watertight Mechanical Interlock Device |
|---|---|
| Voltage | 600V AC |
| Amps | 30 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Includes | 4 |
| Accepts Plug Number | 3D150 |
| Viewing Window | No |
| Phase | Three |
| Use With | 3D150 |
| Fused / Nonfused | Nonfused |
| HP | 20 hp |
| Type | Mechanical Interlock |
| Color | Black |
| Standards | UL Listed |
| Material | Thermoplastic |
| Maximum Wire Size | 8 AWG |
| Locking Handle | Yes |
| Fuse Type | Not Applicable |
| Circuit Breaker Amp Rating | 30 A |
| Overall Height | 10.12 in |
| Grounding | Grounded |
| NEMA Enclosure Rating | Not Rated |
| Circuit Breaker Type | Not Applicable |
| Circuit Breaker | No |
| For Location | Indoor, Outdoor |
| Horsepower Rating | 20 HP |
| UL 94 Flammability Rating | V-0, 5VA |
| Compatible Plug Manufacturer Part Number | 3D150 |
| Resistance Properties | Watertight |
| Includes Mounting Hardware | Yes |
| Housing Color | Black |
| Fuse Protection | Non-Fused |
| Electrical Connection Type | Pin and Sleeve |
| Reverse Service | No |
| Maximum Operating Temperature | 75 deg C |
| IP Rating | IP67 |
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Housing Material | Thermoplastic |
| Overall Width | 7-3/4 in |
| Minimum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40 deg C |
| Max. Voltage | 600 V AC |
| UV Resistance | All Materials are UV Stabilized |
| Dielectric Strength | 3,000 V AC |
| Weight | 6.25 lb |
| Service | Standard |
| Cord Size | 12 to 8 AWG |
| Gasket Material | Neoprene |
| Flammability | UL 94 5VA, UL 94 V0 |
| NEMA Rating | 4X, 12 |
| Screw Material | 300 Stainless Steel |
| Operating Temp. | -40 to 75°C |
| Wire Size | #12 AWG to #8 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Application | High Ampacity Watertight Connections |
| Style | Standard Service |
| Display Size | Standard Sized Product |
| Wattage | 18,000 |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | UL Listed |
| Item Type | Mechanically Interlocked Single |
| Current / Amperage Rating | 30 A |
| Environmental Conditions | Watertight |
| Series | Unfused Circuit-Lock |
| Voltage Rating Description | 3 Phase 600 VAC |
| Package Quantity | 1 |
