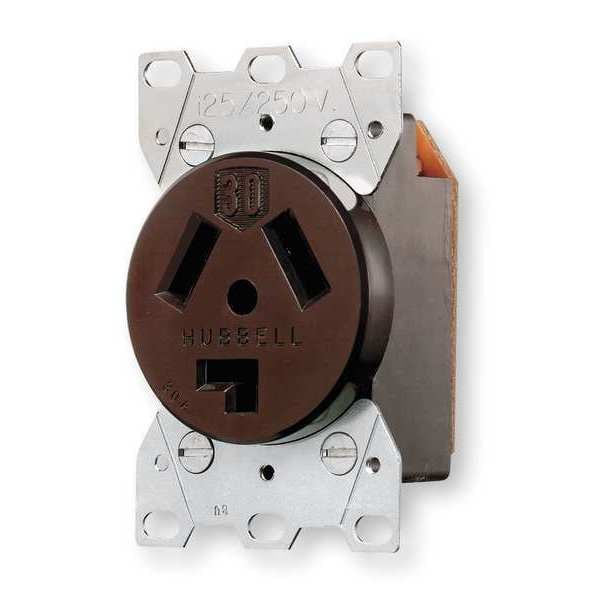

Receptáculo, 30 Amperios, 125/250V AC, Montaje al Ras, Salida única, 10-30R, Negro.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 10-30R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Power Indicator | No |
| Corrosion Resistant | No |
| Voltage | 125/250VAC |
| Weather Resistant | No |
| Accessory Group | C |
| IP Rating | IP20 |
| Boot Code | C |
| Material | Phenolic |
| Sub-Category | Single Receptacles |
| HP | 2 hp |
| Wiring Method | Back, Side |
| Number of Gangs | 1 |
| Color | Black |
| Mounting Type | Flush |
| Amps - Plugs and Receptacles | 30 |
| Phase | Single |
| Amps | 30 |
| Outlet Type | Single |
| Standards | CSA Certified, UL Listed |
| Market | Industrial |
| Shrouded | No |
| Housing Material | Phenolic |
| Grounding | Grounded |
| NEMA Receptacle Configuration | 10-30R |
| Polarized | Yes |
| Flange Type | Non-Flanged |
| Horsepower Rating | 2 HP |
| AFCI | No |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 1 |
| GFCI | No |
| Surge Protection | No |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Receptacle Type | Single |
| Voltage Rating | 125/250V AC |
| Grade | Federal Specification |
| Cover Type | No Cover |
| Housing Color | Black |
| Mount Type | Flush |
| Rating | 30A, 125/250V |
| Receptacle Grade | Heavy Duty Spec Grade |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Base Material | Phenolic |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Screw Material | 3/8" Allen Head, Plated Steel |
| Current Interrupting | Certified for current interrupting at full rated current |
| Mounting Screw Material | Steel-Zinc Plated |
| Standard | NEMA |
| Type | 3 Wire, 3 Pole, Non Grounding |
| Amperage | 30 A |
| NEMA No. | 10 to 30 R |
| Box Terminals Material | Copper |
| Power Contacts Material | Brass |
| Mounting Strap Material | Steel |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Top Material | Phenolic |
| Certification | UL Listed, File E2186, Listed to UL Standard 498 |
| Poles and Wires | 3 Pole, 3-Wire Non-Grounding |
| Dielectric Voltage | Withstands 2,000V minimum |
| Flammability | UL 94 V0., UL 94 V-1 or better |
| Receptacle Style | Single |
| IP Suitability | IP20 |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Color | Black |
| Horsepower | 2 |
| Face Shape | Traditional |
| Face Style | Finder Groove |
| Package Quantity | 1 |
