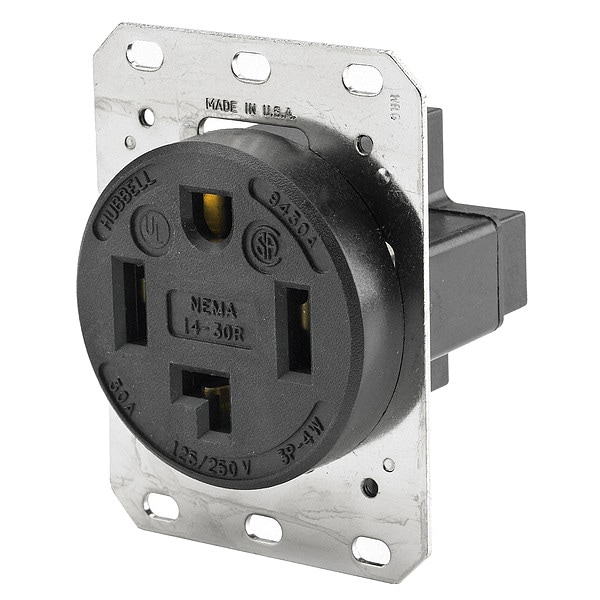

Receptáculo, 30 amperios, 125/250V AC, montaje empotrado, salida sencilla, 14-30R, color negro.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 14-30R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Power Indicator | No |
| Wiring Method | Back, Side |
| Mounting Type | Flush |
| Phase | Single |
| IP Rating | IP20 |
| Outlet Type | Single |
| Material | Thermoplastic Polyester |
| Corrosion Resistant | No |
| Boot Code | D |
| Accessory Group | D |
| Standards | CSA Certified, NEMA WD-6, UL E2186 |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Voltage | 125/250VAC |
| Color | Black |
| Amps - Plugs and Receptacles | 30 |
| HP | 2 hp |
| Amps | 30 |
| Sub-Category | Single Receptacles |
| Width | 2-3/4 in |
| Height | 2.44 in |
| Cover Type | No Cover |
| Maximum Operating Temperature | 167 deg F |
| Mount Hole Center-to-Center Height | 3.3 in |
| Voltage Rating | 125/250V AC |
| Surge Protection | No |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| For Location | Indoor |
| Horsepower Rating | 2 HP |
| Grounding | Grounded |
| Maximum Wire Size | 4 AWG |
| Contact Material | Brass |
| GFCI | No |
| UL 94 Flammability Rating | V-0 |
| Minimum Wire Size | 12 AWG |
| Shrouded | No |
| Minimum Operating Temperature | -40 deg F |
| Connection Orientation | Straight |
| AFCI | No |
| Face Diameter | 2.4 in |
| NEMA Receptacle Configuration | 14-30R |
| Polarized | Yes |
| Grade | Federal Specification |
| NEMA Enclosure Rating | 1 |
| Housing Material | Polyester |
| Mount Hole Center-to-Center Width | 1.8 in |
| Receptacle Type | Single |
| Market | Industrial |
| Current Rating | 30 A |
| Overall Depth | 2.4 in |
| Housing Color | Black |
| Wire Connection Type | Screw Terminals |
| Certification | UL, CSA, Fed Spec |
| Terminal Screw Material | 3/8" Allen Head, Plated Steel |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Horsepower | 2 |
| Base Material | Glass Reinforced PET |
| Ground Screw Material | 3/8" Allen Head, Plated Steel |
| Mounting Screw Material | Steel-Zinc Plated |
| Top Material | Glass Reinforced PET |
| Receptacle Grade | Heavy Duty Spec Grade |
| Flammability | UL 94 V0. |
| Mounting Strap Material | Steel |
| Amperage | 30 A |
| Power Contacts Material | Brass |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Standard | NEMA |
| Rating | 30A, 125/250V |
| Face Shape | Traditional |
| Poles and Wires | 3 Pole, 4 Wire Grounding |
| Face Style | Finder Groove |
| Type | Grounding, 3 Pole, 4 Wire |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Current Interrupting | Certified for current interrupting at full rated current |
| Box Terminals Material | Copper |
| IP Suitability | IP20 |
| Dielectric Voltage | Withstands 2,000V minimum |
| Device Color | Black |
| Receptacle Style | Single |
| NEMA No. | 14 to 30 R |
| Amperage Rating | 30 A |
| Dimensions | 3.28 in x 2-3/4 in x 2.44 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 3.28 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Voltage Rating Description | 125/250 V |
| Horsepower - Maximum | 2 |
| Wire Size | #12 AWG to #4 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 14-30R |
| Application | Heavy Duty |
| Wattage | 7500 W |
| Industry Standard(s) | Certified to CSA NEMA® WD-6 Compliant UL Listed File E2186 |
| Display Size | Standard Sized Product |
| Item Type | Single |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Package Quantity | 1 |
