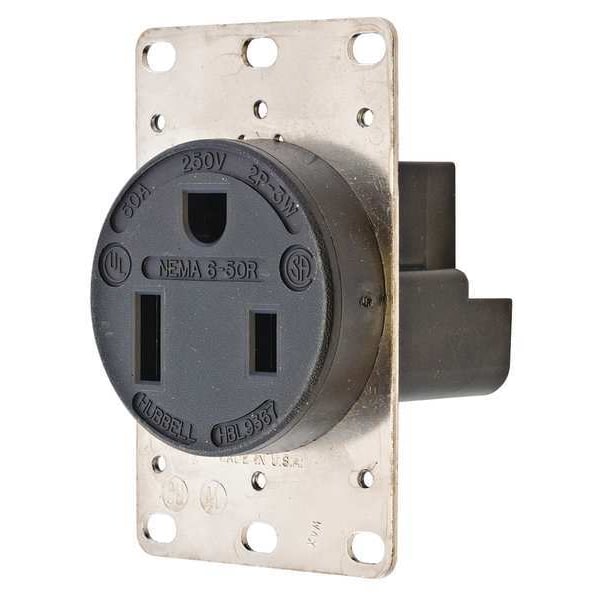

Receptáculo, 50 amperios, 250V CA, montaje empotrado, toma única, 6-50R, color negro.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-50R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Standards | CSA Certified, Federal Specification, UL Listed |
| Phase | Single |
| Amps - Plugs and Receptacles | 50 |
| Corrosion Resistant | No |
| Accessory Group | C |
| Color | Black |
| Wiring Method | Back, Side |
| Boot Code | C |
| Mounting Type | Flush |
| Sub-Category | Single Receptacles |
| Voltage | 250VAC |
| Outlet Type | Single |
| Amps | 50 |
| Material | Phenolic |
| HP | 3 hp |
| IP Rating | IP20 |
| Height | 2.23 in |
| Width | 2-1/4 in |
| Minimum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-0 |
| Current Rating | 50 A |
| Overall Depth | 2.2 in |
| For Location | Indoor |
| Housing Material | Composite, Thermoplastic |
| AFCI | No |
| Housing Color | Black |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Cover Type | No Cover |
| Mount Hole Center-to-Center Height | 3.3 in |
| NEMA Receptacle Configuration | 6-50R |
| Receptacle Type | Single |
| Maximum Wire Size | 4 AWG |
| NEMA Enclosure Rating | 1 |
| GFCI | No |
| Surge Protection | No |
| Grade | Federal Specification |
| Polarized | Yes |
| Market | Industrial |
| Mount Type | Flush |
| Voltage Rating | 250V AC |
| Minimum Operating Temperature | -40 deg F |
| Grounding | Grounded |
| Flange Type | Non-Flanged |
| Horsepower Rating | 3 HP |
| Mount Hole Center-to-Center Width | 1.3 in |
| Face Diameter | 2.1 in |
| Maximum Operating Temperature | 167 deg F |
| Receptacle Style | Single |
| Power Contacts Material | Brass |
| Type | Grounding, 3 Wire, 2 Pole |
| Dielectric Voltage | Withstands 2,000V minimum |
| Face Style | Finder Groove |
| Rating | 50A, 250V |
| Certification | UL, CSA, Fed Spec |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Receptacle Grade | Heavy Duty Spec Grade |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Standard | NEMA |
| Mounting Screw Material | Steel-Zinc Plated |
| NEMA No. | 6 to 50 R |
| Flammability | UL 94 V0. |
| Amperage | 50 A |
| Base Material | Phenolic |
| Box Terminals Material | Brass |
| Mounting Strap Material | Steel |
| Device Color | Black |
| IP Suitability | IP20 |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Horsepower | 3 |
| Top Material | Phenolic |
| Face Shape | Traditional |
| Ground Screw Material | Steel |
| Terminal Screw Material | Steel |
| Connectivity | Back and Side Wired Screw Terminals |
| Application | Heavy Duty |
| Wire Size | #12 AWG to #4 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | Single |
| Wattage | 12500 W |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | UL, CSA, Fed Spec |
| Horsepower - Maximum | 3 |
| Display Size | Standard Sized Product |
| Amperage Rating | 50 A |
| Nema Rating | 6-50R |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 50 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in x 2-1/4 in x 2.23 in |
| Length | 3.28 in |
| Voltage Rating Description | 250 V |
| Package Quantity | 1 |
