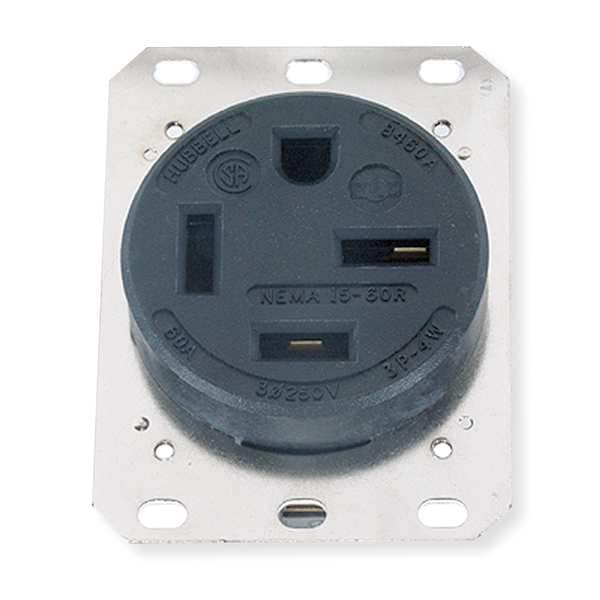

Receptáculo, 60 amperios, 250V CA, montaje al ras, un solo enchufe, 15-60R, negro.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 15-60R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Power Indicator | No |
| HP | 10 HP |
| Material | Thermoplastic Polyester |
| Sub-Category | Single Receptacles |
| Boot Code | D |
| Outlet Type | Single |
| Color | Black |
| Wiring Method | Back, Side |
| Amps - Plugs and Receptacles | 60 |
| Phase | Three |
| Corrosion Resistant | No |
| IP Rating | IP20 |
| Number of Gangs | 1 |
| Standards | CSA Certified, NEMA WD-6, UL E2186 |
| Accessory Group | D |
| Amps | 60 |
| Weather Resistant | No |
| Voltage | 250VAC |
| Mounting Type | Flush |
| Contact Material | Brass |
| NEMA Enclosure Rating | 1 |
| Horsepower Rating | 3 HP |
| Cover Type | No Cover |
| Minimum Operating Temperature | -40 deg F |
| For Location | Indoor |
| Housing Color | Black |
| Maximum Wire Size | 6 AWG |
| Market | Industrial |
| NEMA Receptacle Configuration | 15-60R |
| Mount Hole Center-to-Center Width | 1.8 in |
| Receptacle Type | Single |
| Face Diameter | 2.4 in |
| Overall Depth | 2.4 in |
| Surge Protection | No |
| AFCI | No |
| Current Rating | 60 A |
| Voltage Rating | 250V AC |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 167 deg F |
| Wire Connection Type | Screw Terminals |
| Housing Material | Thermoplastic |
| Grade | Federal Specification |
| Flange Type | Non-Flanged |
| Mount Hole Center-to-Center Height | 3.3 in |
| Shrouded | No |
| UL 94 Flammability Rating | V-0 |
| Polarized | Yes |
| GFCI | No |
| Mount Type | Flush |
| Grounding | Grounded |
| Minimum Wire Size | 12 AWG |
| Ground Screw Material | 3/8" Allen Head, Plated Steel |
| Face Shape | Traditional |
| Current Interrupting | Certified for current interrupting at full rated current |
| Terminal Screw Material | 3/8" Allen Head, Plated Steel |
| Device Color | Black |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Amperage | 60 A |
| Power Contacts Material | Brass |
| Face Style | Finder Groove |
| Box Terminals Material | Copper |
| Mounting Strap Material | Steel |
| Base Material | Glass Reinforced PET |
| NEMA No. | 15 to 60 R |
| Receptacle Grade | Heavy Duty Spec Grade |
| Top Material | Glass Reinforced PET |
| Certification | UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285. |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Standard | NEMA |
| Poles and Wires | 3 Pole, 4 Wire Grounding |
| IP Suitability | IP20 |
| Receptacle Style | Single |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Rating | 60A, 3ph 250V |
| Type | Grounding, 3 Pole, 4 Wire |
| Horsepower | 10 |
| Flammability | UL 94 V0. |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Screw Material | Steel-Zinc Plated |
| Package Quantity | 1 |
