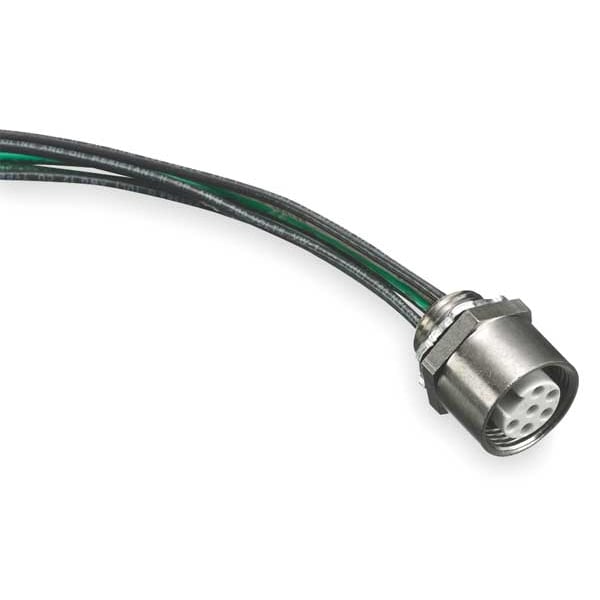

Receptáculo, hembra, 30A, 1 pie, 4 cables
| Item | Receptacle |
|---|---|
| Cable Length | 1 ft |
| Jacket Color | Green/Yellow/Black |
| Plug End | Female |
| Max. Voltage | 600VAC |
| Receptacle | Female |
| Jacket Type | MTW |
| Conductor Material | Copper |
| Gauge/Conductor | 2.5 |
| Enclosure Type | NEMA 4X |
| For Use With | Mfr. No. 2DZU9, 2DZV1, 2DZV2, 2XE21 and 2XE22 Cables, 2DZW5 Tee |
| Cord Length (Ft.) | 1 |
| Amps AC | 30 A |
| Type | Female |
| Plug Type | 4-Wire |
| IP Rating | IP67 |
| Color | Green, Yellow, Black |
| Number of Conductors | 4 |
| Max. Amps | 30 |
| Standards | Listed to UL 2238 and UL 50E |
| Cord Length | 1 ft |
| Voltage Rating | 600V AC |
| Maximum Operating Temperature | 75 deg C |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 4X |
| Minimum Operating Temperature | -40 deg C |
| Contact Material | Copper |
| UL 94 Flammability Rating | V-0 |
| Number of Wires | 4 |
| Number of Poles | 4 |
| Component Type | Receptacle |
| Gender Configuration | Female |
| Series | MotorQuick/LINKOSITY |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Listed to UL 2238 and UL 50E |
| Construction | Fabricated |
| Conductor Type | Copper |
| Wattage | 18,000 |
| Style | Female Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
