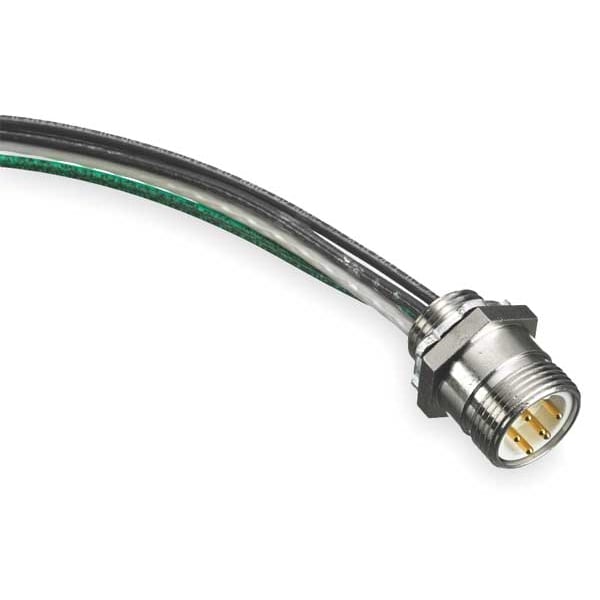

Receptáculo macho de 30 amperes, 1 pie de longitud, 4 hilos.
| Item | Receptacle |
|---|---|
| Cable Length | 1 ft |
| Jacket Color | Green/Yellow/Black |
| Plug End | Male |
| Max. Voltage | 600VAC |
| Enclosure Type | NEMA 4X |
| Receptacle | Male |
| Amps AC | 30 A |
| Type | Male |
| Cord Length (Ft.) | 1 |
| Jacket Type | TC-ER |
| For Use With | Install at Motor Connection box, 2DZU9, 2DZV1, 2DZV2, 2XE21 and 2XE22 Cable, 2XE17, and 2XE19 Switched Enclosure |
| Plug Type | 4-Wire |
| Conductor Material | Copper |
| Gauge/Conductor | 2.5 |
| Standards | Listed to UL 2238 and UL 50E |
| Number of Conductors | 4 |
| Color | Green, Yellow, Black |
| IP Rating | IP67 |
| Temp. Range | -40 to 75 deg C |
| Max. Amps | 30 |
| Cord Length | 1 ft |
| Number of Poles | 4 |
| Component Type | Receptacle |
| NEMA Enclosure Rating | 4X |
| Gender Configuration | Male |
| Current Rating | 30 A |
| Contact Material | Copper |
| Number of Wires | 4 |
| Voltage Rating | 600V AC |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| MotorQuick Item | Accessories |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| MotorQuick Accessory Item | Male Receptacle |
| Listing and Certifications | cUL US Listed |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Construction | Fabricated |
| Industry Standard(s) | Listed to UL 2238 and UL 50E |
| Wattage | 18,000 |
| Amperage Rating | 30 A |
| Series | MotorQuick/LINKOSITY |
| Conductor Type | Copper |
| Style | Male Receptacle |
| Package Quantity | 1 |
