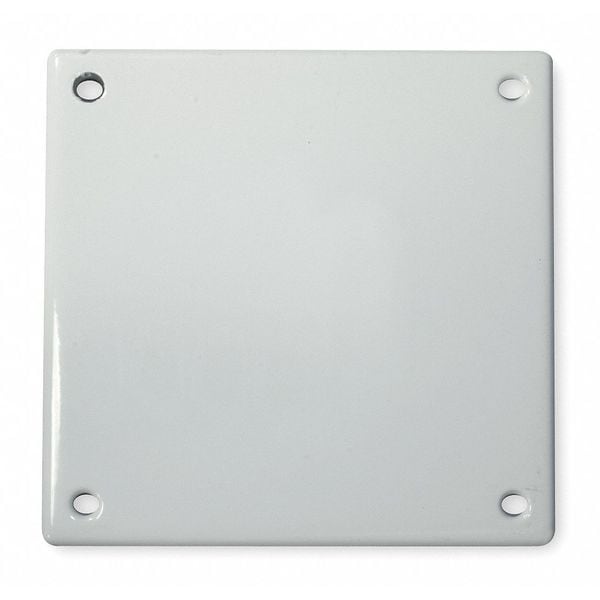

Security Series, Number of Gangs: 2-Gang Steel, Zinc Plated, Powder Finish, White
| Number of Gangs | 2-Gang |
|---|---|
| Item | Security Series |
| Color | White |
| Material | Steel, Zinc Plated |
| Size | Oversized |
| Finish | Powder |
| Weather Resistant | No |
| Tamper Resistant | No |
| Ligature Resistant | Yes |
| Standards | UL Listed |
| Type | Security |
| No. of Cutouts | 2 Blank |
| Standard | UL Listed |
| Orientation | Vertical Mount |
| Mounting Hardware Material | Screw Mounting |
| Display Size | Oversized |
| Thickness | 0.55 |
| Application | Protection against contact of live terminals and wiring. Provides finished look to installation. |
| Construction | Stamped |
| Brand | Hubbell Wiring Device-Kellems |
| Style | 2-Blank |
| Carton Quantity | 20 |
| Resistance Properties | Shatter and Crack Resistant, Ligature Resistant |
| Material Type | Metallic |
| Plate Size | Standard |
| Outlet Orientation | Vertical |
| Overall Height | 5.7 in |
| Number of Outlet Openings | 0 |
| Wall Plate Type | Blank |
| Number of Switch Openings | 0 |
| Mount Type | Box |
| Product Dimensions | 5.52 in x 5.52 in |
| Dimension B | 5.52" (140.21) |
| Dimension G | 4.63" (117.60) |
| Dimension E | 5.13" (130.30) |
| Gangs | 2 |
| Dimension C | .55" (13.97) |
| Mounting Screws | (4) #8-32 x 1/2" Stainless Steel, T20 Torx Head |
| Operating Temp | -40 deg. C to 85 deg. C |
| Color/Material | One piece #14 Cold rolled zinc plated steel with safety ground tab. White |
| Listings | UL Standard 514D |
| Appearance | Five stage baked white polyester powder enamel finish |
| Dimension A | 5.52" |
| Device Opening(s) | 2) Blanks |
| Dimension F | 1.00" (25.40) |
| Certification | UL Files #31999 and E115546. CSA Standard C22.2 42M CSA File LR18416 |
| Dimension D | 5.13" |
| Dimension H | 4.63" |
| Industry Standard(s) | UL Listed |
| Item Type | Security Series |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number of Gang(s) | 2-Gang |
| Cutout | 2) Blank |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
