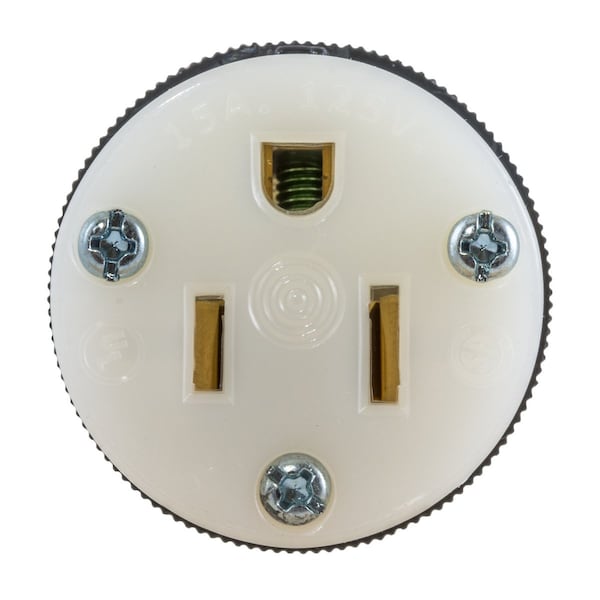

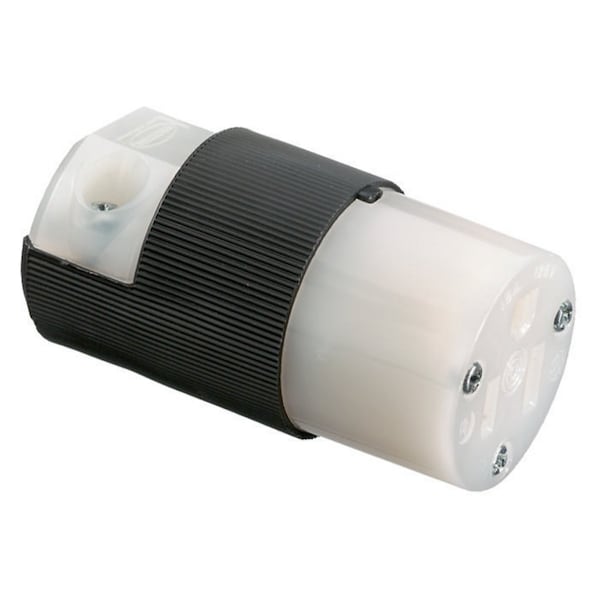

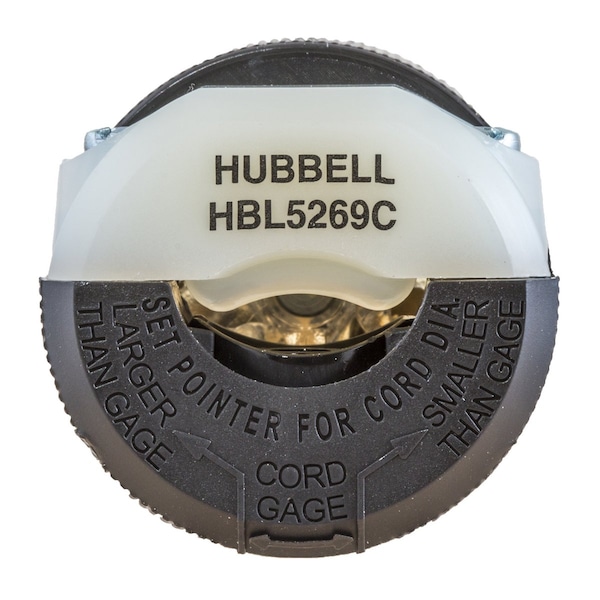

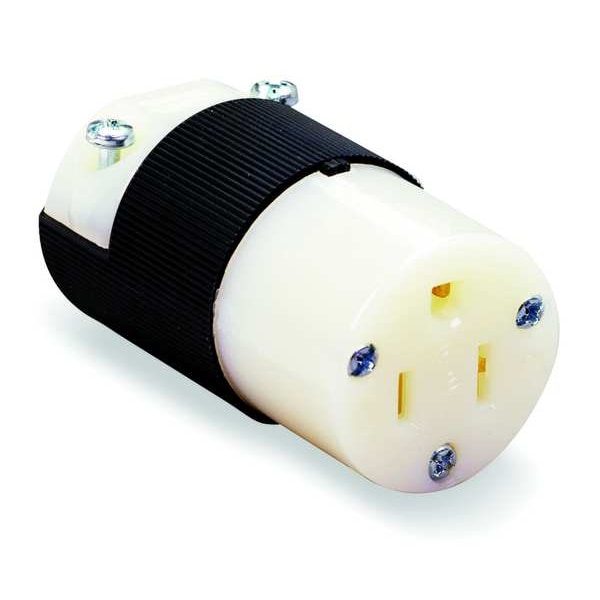

Conector de hoja recta, hembra, NEMA 5-15R, 15 A, 125V CA, 2 polos, 3 cables, negro/blanco.
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | White, Black |
| Grade - Plugs and Receptacles | Industrial |
| Antimicrobial | No |
| Power Indicator | No |
| HP | 1/2 hp |
| Cord Size | 0.23 to 0.72 in |
| Phase | Single |
| Grade | Industrial |
| Color | Black, White |
| Corrosion Resistant | No |
| Material | Nylon |
| Amps | 15 |
| IP Rating | IP20 |
| Item | Straight Blade Connector |
| Special Features | Moisture, Dust, and Weather Resistant |
| Standards | CSA Certified, NEMA WD-6, UL Listed |
| Current Rating | 15 A |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Minimum Wire Size | 18 AWG |
| Cap Type | No Cap or Cover |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Nylon |
| For Environment | Dry |
| Power Indicating Light | No |
| Connection Orientation | Straight |
| Housing Color | Black, White |
| Shrouded | No |
| Voltage Rating | 125 V AC |
| Overall Length | 2.65 in |
| For Maximum Cable Diameter | 0.66 in |
| Market | Industrial, Commercial |
| Polarized | Yes |
| Horsepower Rating | 0.5 HP |
| For Minimum Cable Diameter | 0.3 in |
| Contact Material | Brass |
| For Location | Indoor |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 75 deg C |
| Blade Type | Straight Blade |
| Grounding Style | Grounding |
| Dielectric Strength | Withstands 2,000V minimum. |
| Weight | 0.15 lb |
| NEMA Configuration | 5-15 |
| Promotional Badge | Best Seller |
| Package Quantity | 1 |
