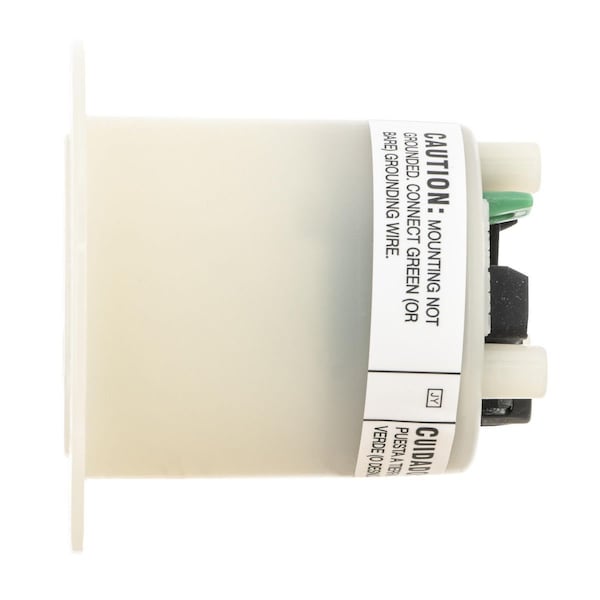

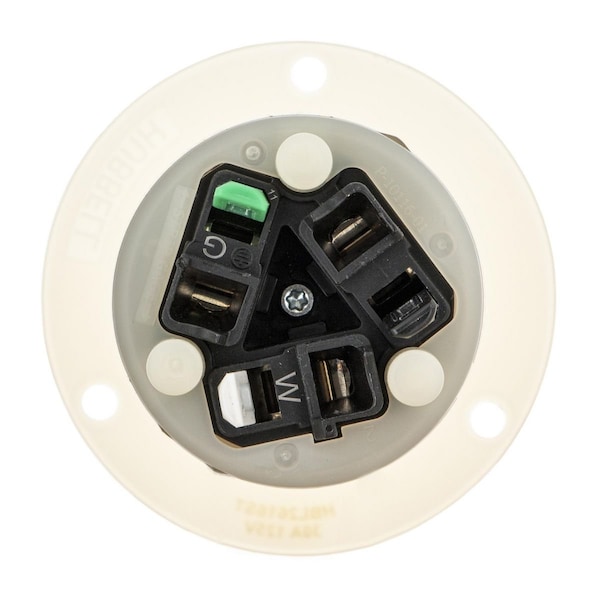

Twist-Lock®, EdgeConnect™, Flanged Receptacle, 20A 125V, L5-20R, Screwless Terminal
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L5-20 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| IP Rating | IP20 |
| Standards | cULus Listed, Federal Specification |
| Face Plate Width | 1.7 in |
| Flange Type | Non-Flanged |
| Cover Type | No Cover |
| Maximum Wire Size | 8 AWG |
| Connection Orientation | Straight |
| Polarized | Yes |
| Housing Material Finish | Natural |
| Housing Material | Nylon |
| Current Rating | 30 A |
| AFCI | No |
| Overall Depth | 2.67 in |
| Mount Hole Center-to-Center Height | 3.28 in |
| Number of Gangs | 1 |
| Grounding | Grounded |
| Minimum Wire Size | 14 AWG |
| Voltage Rating | 125V AC |
| Includes Mounting Hardware | No |
| Market | Industrial |
| Housing Color | White |
| Contact Material | Copper |
| NEMA Enclosure Rating | 1 |
| Shrouded | Yes |
| NEMA Receptacle Configuration | L5-20R |
| Face Diameter | 2.88 in |
| Face Plate Height | 2.77 in |
| Flange Diameter | 2.04 in |
| Resistance Properties | Impact Resistant |
| Current / Amperage Rating | 30 A |
| Type | Flanged Receptacle |
| Series | EdgeConnectâ„¢ |
| Package Quantity | 1 |
