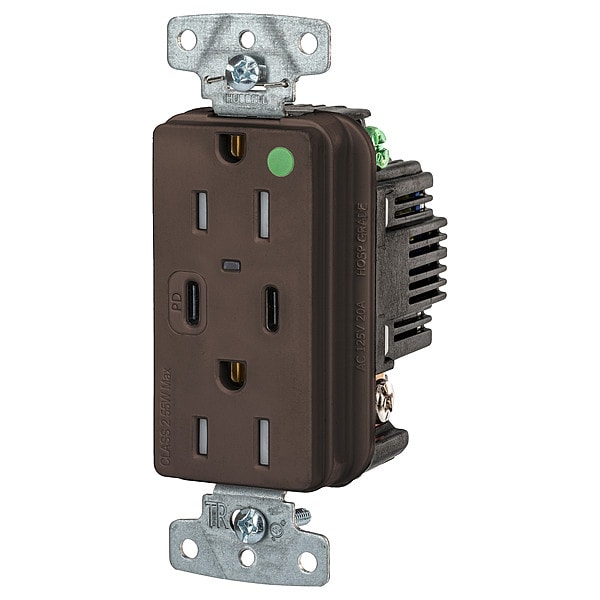

USB Receptacle, Brown, 1/2 hp
| Current Rating | 15 A |
|---|---|
| Face Plate Height | 2.6 in |
| Wiring Method | Back, Side |
| Wire Connection Type | Screw Terminals |
| Horsepower Rating | 0.5 HP |
| Grade | Hospital Grade |
| Phase | Single |
| Minimum Wire Size | 14 AWG |
| Housing Material | Thermoplastic |
| Grounding | Grounded |
| Power Indicating Light | Yes |
| Mount Type | Flush |
| Maximum Operating Temperature | 167 deg F |
| Includes Mounting Hardware | Yes |
| GFCI | No |
| Minimum Operating Temperature | -40 deg F |
| Maximum Wire Size | 10 AWG |
| USB Charging Capacity | 5 A |
| USB Connection Type | A, C |
| Number of USB Ports | 2 |
| Visual Indicator Lights | Power Connected |
| Number of Poles | 2 |
| Number of Outlets | 2 |
| Item | USB Receptacle |
| NEMA Receptacle Configuration | 5-15R |
| Electrical Connection Type | Straight Blade |
| Resistance Properties | Tamper Resistant |
| Mount Hole Center-to-Center Height | 3.28 in |
| Number of Wires | 3 |
| Face Plate Width | 1.3 in |
| Receptacle Type | Duplex |
| Housing Color | Brown |
| Market | Commercial |
| Contact Material | Brass |
| IP Rating | IP20 |
| UL 94 Flammability Rating | V-2 |
| Overall Depth | 2 in |
| Standards | cULus Listed to Ul498, Ul1310 |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
