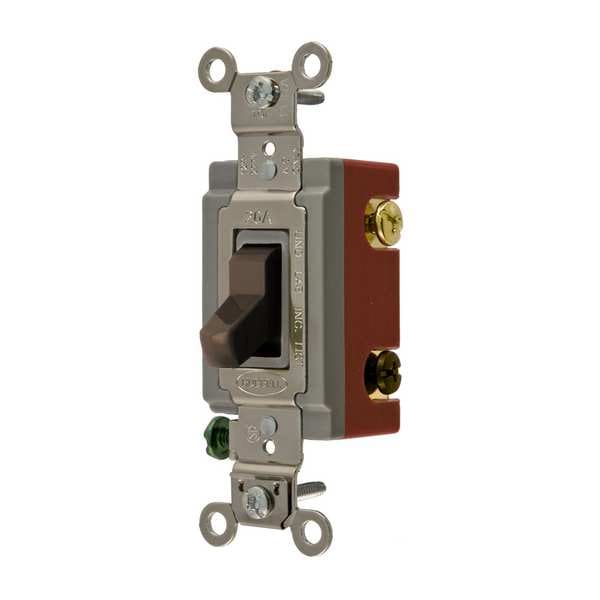

Wall Switch, 3-Way, 120/277V, 20A, Brn, Toggl
| Item | Wall Switch |
|---|---|
| Switch Type | 3-Way |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Brown |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Industrial |
| Antimicrobial | No |
| Rated HP | 1 |
| Standards | UL Listed |
| Voltage | 120/277V AC |
| Minimum Wire Size | 14 AWG |
| Overall Height | 1.9 in |
| Resistance Properties | Shatter and Crack Resistant, Impact Resistant |
| Minimum Operating Temperature | -40 deg F |
| Voltage Rating | 120/277V AC |
| Overall Width | 1.3 in |
| Maximum Operating Temperature | 75 deg C |
| Current Rating | 20 A |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Locking Style | Not Applicable |
| Switch Material | Nylon |
| Maximum Wire Size | 10 AWG |
| Features | Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring |
| Horsepower Rating | 1 HP |
| Number of Switches | 1 |
| Width | 1.31 in |
| Length | 4.06 in |
| Style | Three Way |
| Type | Toggle |
| Height | 1.87 in |
| Max. Continuous Current | 20 A |
| Switch Grade | Industrial |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Switch Handle Positions | 2 |
| Amperage | 20 A |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Toggle Color | Brown |
| Product Type | Toggle-switches |
| Wiring Style | Back and Side Wired |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Flammability | UL 94V-2 |
| Max. Working Voltage | 277V AC |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Temperature Rise | 30°C maximum at rated current |
| Listing and Certifications | Listed to Standard UL 20, CSA Certified, Meets NEMA WD1 |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Wire Size | #14 AWG to #10 AWG |
| Series | Extra Heavy Duty |
| Application | Back and Side Wired |
| Connectivity | Back and Side Wired |
| Voltage Rating Description | 120-277 VAC |
| Action | SPDT |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Number Of Poles | Single Pole |
| Dimensions | 4.06 in x 1.31 in x 1.87 in |
| Package Quantity | 1 |
