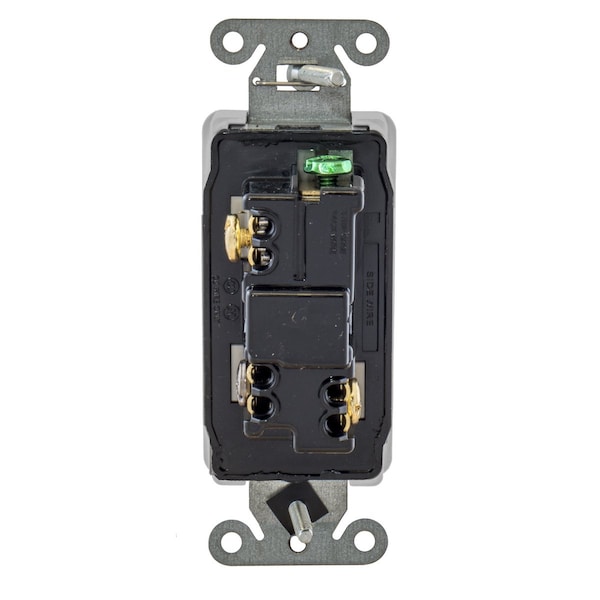

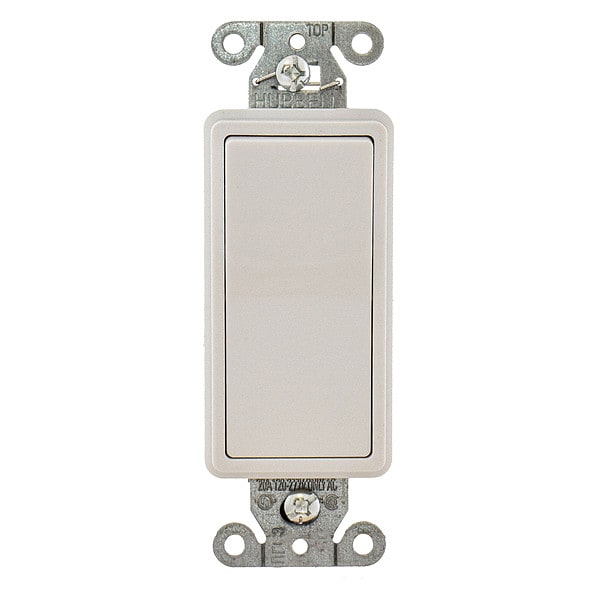

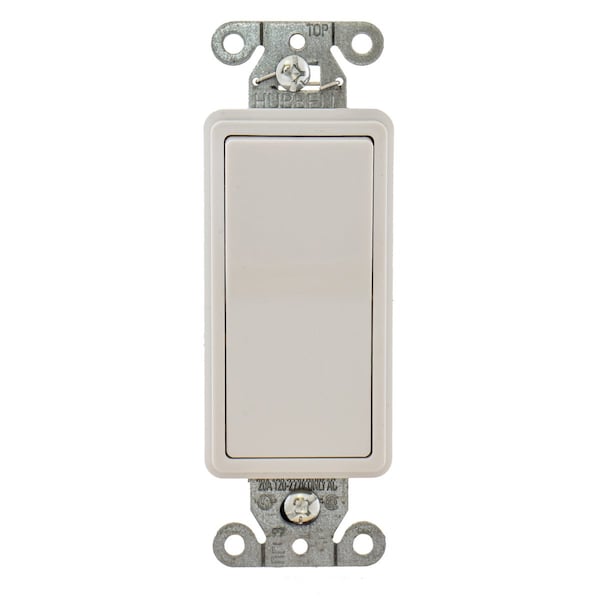

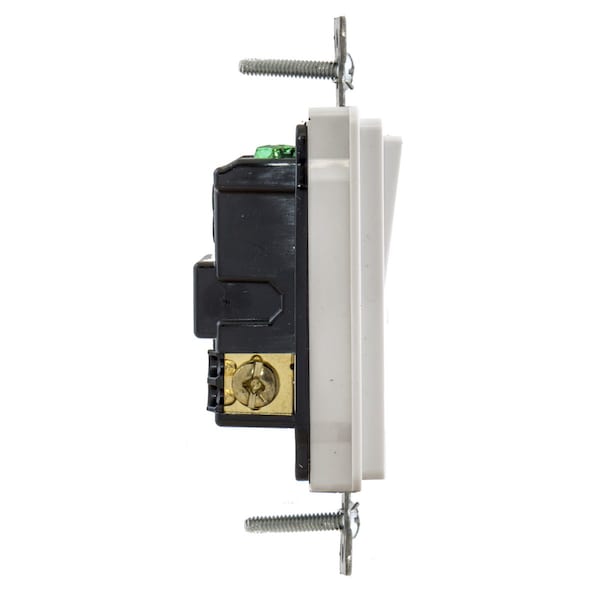

Wall Switch, 3-Way, 120/277V, 20A, Wht, Rockr
| Item | Wall Switch |
|---|---|
| Switch Type | 3-Way |
| Switch Style | Rocker |
| Amps AC | 20 A |
| Color | White |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Standards | UL Listed |
| Antimicrobial | No |
| Rated HP | 1 |
| Voltage | 120/277V AC |
| Number of Switches | 1 |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Impact Resistant |
| Voltage Rating | 120/277V AC |
| Minimum Wire Size | 14 AWG |
| Overall Width | 1.4 in |
| Market | Commercial |
| Housing Material | Thermoplastic |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| Overall Height | 1 in |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40 deg F |
| Features | Automatic Self-Grounding Staple |
| Grounding | Grounded |
| Horsepower Rating | 1 HP |
| Rocker Color | White |
| Switch Handle Positions | 2 |
| Max. Working Voltage | 277V AC |
| Wiring Style | Back and Side Wired |
| Switch Grade | Decorator Series |
| Amperage | 20 A |
| Flammability | UL 94V-2 |
| Product Type | Toggle-switches |
| Temperature Rise | 30°C maximum at rated current |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Max. Continuous Current | 20 A |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Listing and Certifications | UL Listed and CSA Certified |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Package Quantity | 1 |
