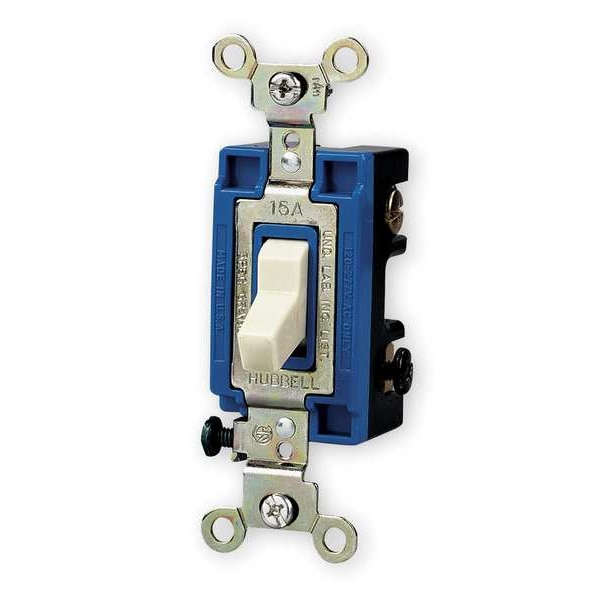

Wall Swtch, 1-Pol, 120/277V, 15A, Ivry, Toggl
| Item | Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 15 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Side |
| Application Environment | Commercial |
| Antimicrobial | No |
| Rated HP | 0.5 |
| Standards | UL Listed |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| Horsepower Rating | 0.5 HP |
| Current Rating | 15 A |
| Housing Material | Nylon |
| Overall Width | 1-1/2 in |
| Resistance Properties | Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant |
| Minimum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40 deg F |
| Switch Material | Nylon |
| Voltage Rating | 120/277V AC |
| Number of Switches | 1 |
| Maximum Wire Size | 10 AWG |
| Market | Commercial |
| Overall Height | 1.8 in |
| Type | Toggle |
| Height | 1.83 in |
| Style | Single Pole |
| Length | 4.18 in |
| Width | 1.49 in |
| Toggle Color | Ivory |
| Approvals | UL, CSA |
| Temperature Rise | 30°C maximum at rated current |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Flammability | UL 94V-2 |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Product Type | Switches |
| Max. Working Voltage | 277V AC |
| Actuator Type | Toggle |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Rating | 15A 120/277V |
| Max. Continuous Current | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | Single Pole |
| Amperage Rating | 15 A |
| Material | Nylon |
| Current / Amperage Rating | 15 A |
| Item Type | Single Pole Toggle Switch |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Connectivity | Side Wired Only |
| Series | General Purpose |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Industry Standard(s) | UL Listed |
| Package Quantity | 1 |
