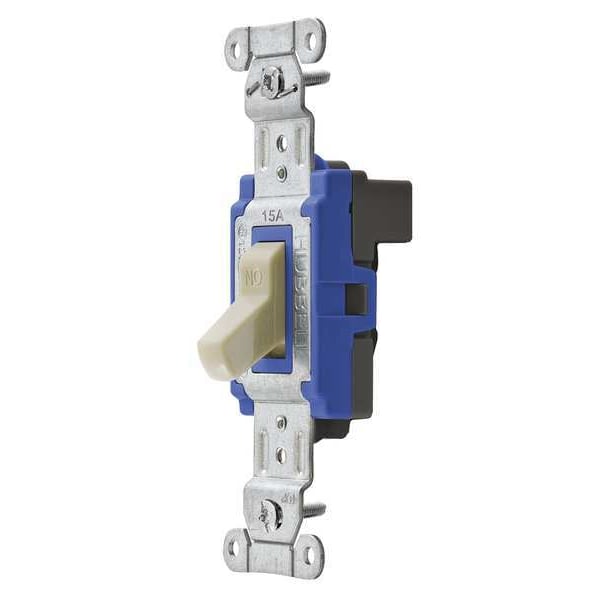

Wall Swtch, 3-Way, 120/277V, 15A, Ivry, Toggl
| Item | Wall Switch |
|---|---|
| Switch Type | 3-Way |
| Switch Style | Toggle |
| Amps AC | 15 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back |
| Application Environment | Commercial |
| Rated HP | 1/2 to 2 |
| Description/Special Features | Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications |
| Standards | UL Listed |
| Antimicrobial | No |
| Number of Switches | 1 |
| Horsepower Rating | 2 HP |
| Current Rating | 15 A |
| Grounding | Grounded |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Impact Resistant |
| Market | Industrial |
| Housing Material | Thermoplastic |
| Locking Style | Not Applicable |
| Features | Automatic Self-Grounding Staple Assures Continuity to Wall Box |
| Voltage Rating | 120/277V AC |
| Wire Connection Type | Modular Wiring |
| Maximum Operating Temperature | 75 deg C |
| Overall Width | 1.3 in |
| Overall Height | 1.7 in |
| Max. Working Voltage | 277V AC |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |

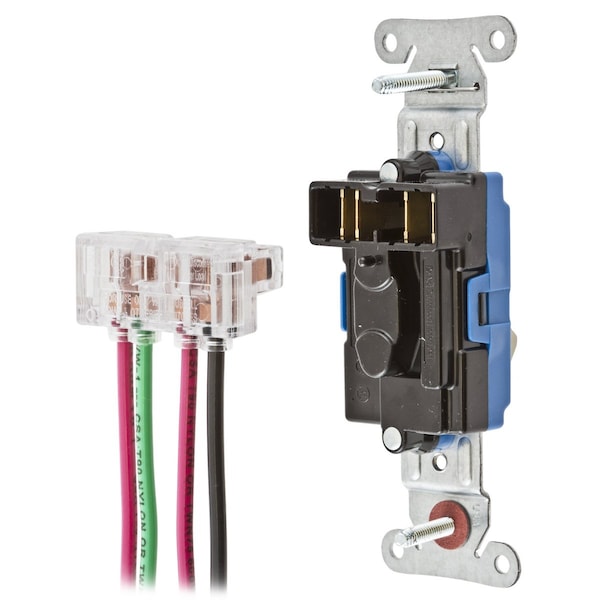

| Terminal Accommodations | Uses SNAPConnect Connector |
| Temperature Rise | 30°C maximum at rated current |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Base Material | Thermoplastic, Black |
| Toggle Material | Thermoplastic |
| Top Material | Thermoplastic, Blue |
| Max. Continuous Current | 15 A |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Toggle Color | Ivory |
| Contacts | Silver Alloy |
| Terminals | Brass |
| Flammability | UL 94V-2 |
| Package Quantity | 1 |
