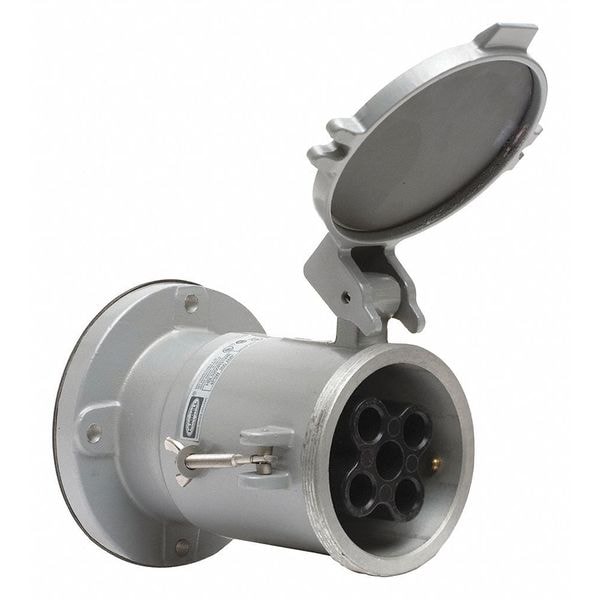

Watertight Pin and Sleeve Receptacle, Gry
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 |
| Amps - Plugs and Receptacles | 200 |
| Voltage - Plugs and Receptacles | 250/600V AC |
| Color - Plugs and Receptacles | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | Style 2 |
| NEMA Rating | 4x |
| Power Indication | No |
| Standards | CSA Certified to CSA Spec. C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed |
| Item | Watertight Pin and Sleeve Receptacle |
| Features | Spring Guide and Assembly Screws Thermoset Polyester Contact Carrier and Retainer |
| Phase | Single, Three |
| Market | Industrial |
| Flange Type | Flanged |
| Connection Orientation | Straight |
| Current Rating | 200 A |
| Housing Material | Aluminum |
| Housing Material Finish | Epoxy Painted |
| Maximum Operating Temperature | 75 deg C |
| Reverse Service | No |
| Number of Ground Connections | 4 |
| Flange Material | Thermoplastic |
| Minimum Wire Size | 2 AWG |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| Compatible with Series | Insulgrip |
| Minimum Operating Temperature | -40 deg C |
| Shrouded | Yes |
| For Environment | Dusty and Dirty |
| NEMA Enclosure Rating | 4X |
| UL 94 Flammability Rating | V-0 |
| Power Indicating Light | No |
| Housing Color | Gray, Black |
| Cap Type | Spring-Loaded Cap |
| Includes Mounting Hardware | Yes |
| Voltage Rating | 600V AC/250V DC |
| Grounding | Grounded |
| Number of Gangs | 1 |
| Maximum Wire Size | 4/0 AWG |
| Wire Connection Type | Screw Terminals |
| Package Quantity | 1 |
